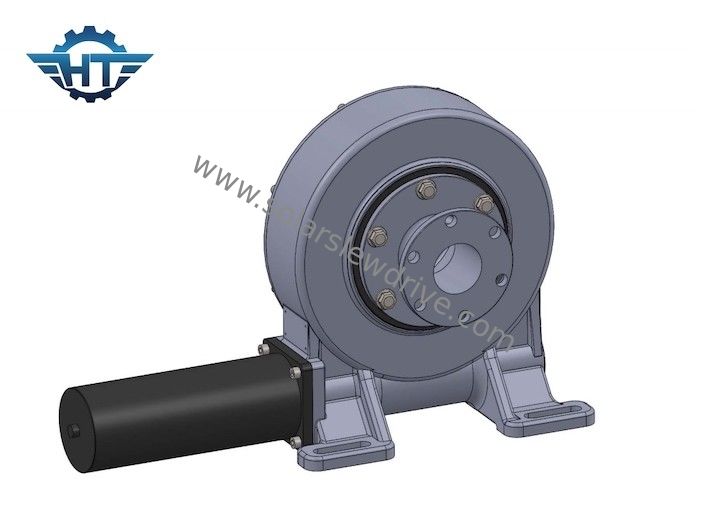

VE7 Vertical Single Axis Worm Slew Drive Gearbox Reducer For Solar Tracking System

VE7 Vertical Single Axis Worm Slew Drive Gearbox Reducer For Solar Tracking System

  • VE7 Vertical Single Axis Worm Slew Drive Gearbox Reducer For Solar Tracking System
  • VE7 Vertical Single Axis Worm Slew Drive Gearbox Reducer For Solar Tracking System
VE7 Vertical Single Axis Worm Slew Drive Gearbox Reducer For Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Gear Ratio: 57:1
Output Torque: 5060 Nm Holding Torque: 40 KNm
Tilting Torque: 5 KNm Model: VE7
Place Of Origin: China Application: Solar Tracking System
High Light:

Single Axis Slew Drive Gearbox

,

Slew Drive Gearbox For Solar Tracking System

,

Worm Slew Drive Gearbox Reducer

VE7 Vertical Single Axis Worm Gearbox Reducer For Solar Tracking System



Single Axis Worm Gearbox Description



Our VE slewing drives are mainly used for PV, STP, CSP axis solar tracking systems. We also have multiple types of slewing drives which are widely used for construction applications, such as truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications, heavy load transporters, bridge inspection equipment, telescopic working platform, basket rotator requirements, yacht crane, cement mixer, excavator, etc. We can also provide multiple sizes of hydraulic motors, DC motors, stepper motors and servo motors to match with slewing drives. Our products have been exported to all over the world.



Technical Sheet of VE Slewing Drive



Model

Ratio

Rated Output Torque(N.m)

Tilting Torque(N.m)

Holding Torque(N.m)

Axial Load(kN)

Radial Load(kN)

Efficiency

Precision(°)

Self-locking

Weight(kg)

3"

31:1

600

1500

1800

22

15

40%

≤0.1

Yes

12

5"

37:1

800

5000

9200

16

27

40%

≤0.1

Yes

18

7"

57:1

1750

7000

13200

34

58

40%

≤0.1

Yes

32

8"

51:1

2250

11200

20400

50

80

40%

≤0.1

Yes

28

9"

61:1

2250

16000

30800

60

130

40%

≤0.1

Yes

52

12"

78:1

4300

25000

40560

77

190

40%

≤0.1

Yes

65

14"

85:1

5600

48000

44200

110

230

40%

≤0.1

Yes

88

17"

102:1

6750

67000

53040

142

390

40%

≤0.1

Yes

135

21"

125:1

16000

89000

65000

337

640

40%

≤0.1

Yes

192

25"

150:1

21450

112000

89000

476

950

40%

≤0.1

Yes

251





Installation Instructions



Horizontal installation & Vertical installation, see below picture.

Tow single sleiwng drives can achieve dual axis slewing drive systems.

One dual axis slewing drive can achieve dual axis slewing drive systems.

One slewing drive with one linear actuator can also achieve dual axis slewing drives.



Our Packaging & Transport



All slew drives will be packed with fumigration-free wooden case.



Support sea transportation , air transportation, road transportation and express such as TNT, DHL,UPS, EMS, Fedex, etc for sample and small cargo transportation.
