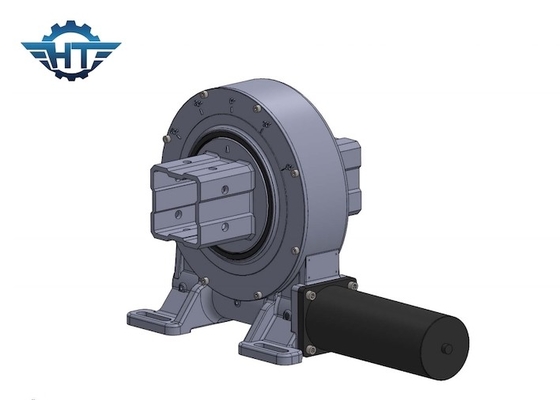

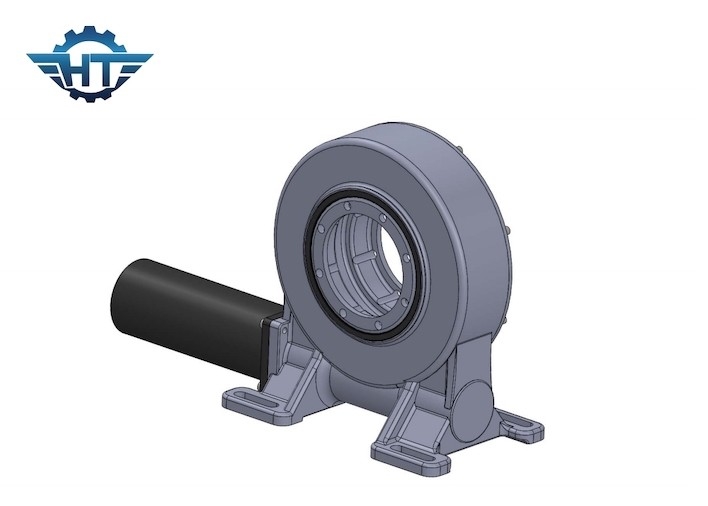

Enveloping Worm Slew Drive Gearbox For CSP Solar Power Stations Wear Resistant

Enveloping Worm Slew Drive Gearbox For CSP Solar Power Stations Wear Resistant

  • Enveloping Worm Slew Drive Gearbox For CSP Solar Power Stations Wear Resistant
  • Enveloping Worm Slew Drive Gearbox For CSP Solar Power Stations Wear Resistant
Enveloping Worm Slew Drive Gearbox For CSP Solar Power Stations Wear Resistant
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE6"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Type: Slew Drive Gearbox Feature: Wear-resistant
Warranty: 5~10 Years Size: 6 Inches
Tooth Type: Helical Slewing Motor: Electric Or Hydraulic
Color: Customer Required Application: CSP And CPV Solar Power Stations
High Light:

Enveloping Worm Slew Drive Gearbox

,

Slew Gearbox For CSP Power Stations

,

Wear Resistant Slew Drive Gearbox

Enveloping Worm Slew Drive Gearbox For CSP And CPV Solar Power Stations​



Slew Drive Gearbox Description



Rotary reducer, English name: Slewing drive, is a type of reducer. It uses a slewing bearing (commonly known as a turntable) as the follower of the reducer, which can realize unlimited circular rotation and deceleration, and can withstand large axial forces, Radial and overturning forces. This kind of device can be applied to all kinds of mechanical equipment with rotating requirements. In particular, this kind of reducer has the advantages of high precision, compact structure and large bearing capacity, and is suitable for use in relatively harsh working conditions.



VE Slewing Drive Performance Data



 VE Model Performance Parameters
Model Rated Output Torque (N.m) Holding Torque (N.m) Tilting Torque (N.m) Axial Load (kN) Radial Load (kN) Ratio Precision (degree) Precision IP Working Tep (℃) Self-locking Weight (kg)
3" 600 1800 1500 22 15 31:1 40% ≤0.10 66 -40~+120 Yes 12kg
5" 800 9200 5000 16 27 37:1 40% ≤0.10 66 -40~+120 Yes 18kg
7" 1750 13200 7000 34 58 57:1 40% ≤0.10 66 -40~+120 Yes 32kg
8" 2250 20400 11200 50 80 51:1 40% ≤0.10 66 -40~+120 Yes 28kg
9" 4300 30800 16000 60 130 61:1 40% ≤0.10 66 -40~+120 Yes 52kg
12" 5600 40560 25000 77 190 78:1 40% ≤0.10 66 -40~+120 Yes 65kg
14" 6750 44200 48000 110 230 85:1 40% ≤0.10 66 -40~+120 Yes 88 kg
17" 9460 53040 67000 142 390 102:1 40% ≤0.10 66 -40~+120 Yes 135 kg
21" 16000 65000 89000 337 640 125:1 40% ≤0.10 66 -40~+120 Yes 192 kg
25" 21450 89000 112000 476 950 150:1 40% ≤0.10 66 -40~+120 Yes 251 kg

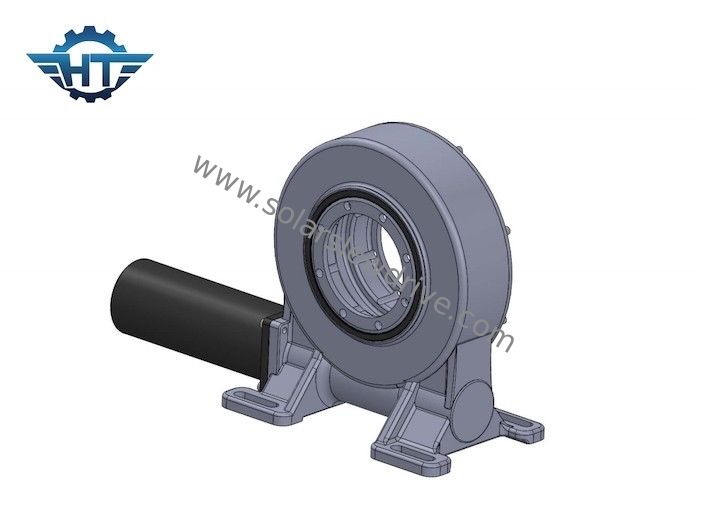

Enveloping Worm Slew Drive Gearbox For CSP Solar Power Stations Wear Resistant 0



Multiple Options



1. Gear reduction ratio 31:1 to 150:1

2. Horizontal, vertical, or combination of multiple axis mounting

3. Single worm or double worm

4. Electric or Hydraulic motor option

5. Housing: Open or Closed

6. Customized input configurations

7. Custom designs per application requirements
