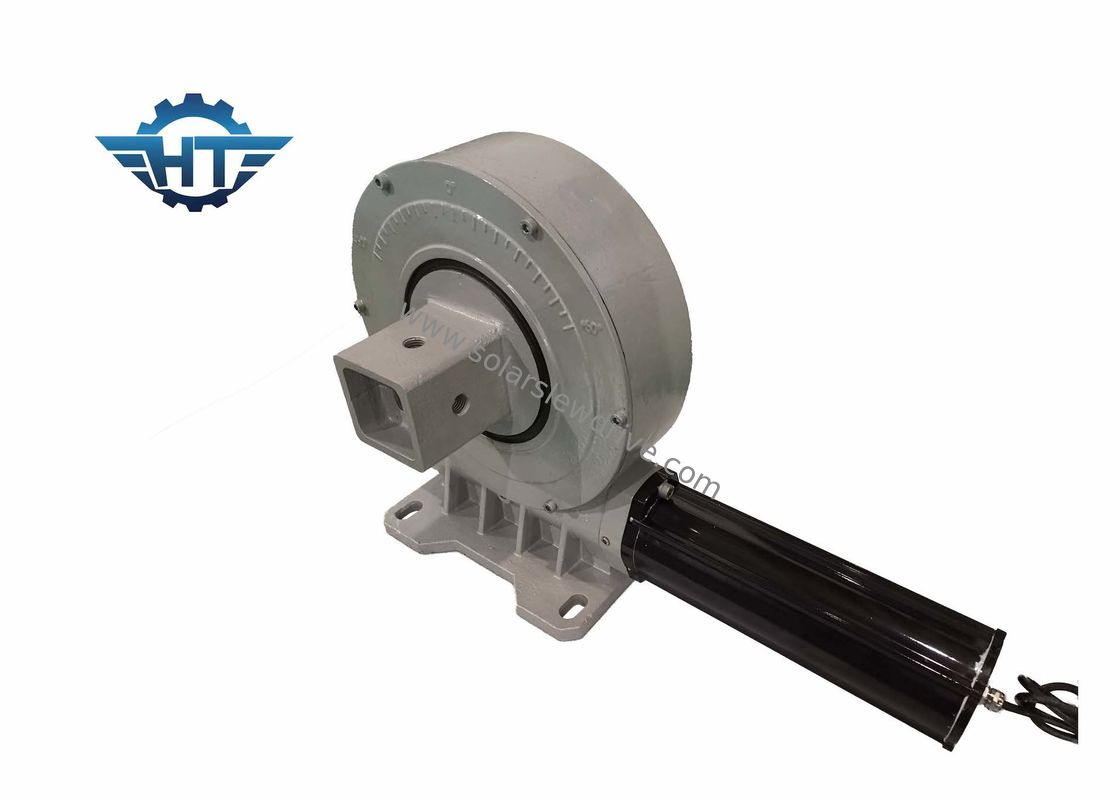

Vertical 42CrMo Slewing Drive Gearbox Electric Gear Motor For Solar Tracking System

Vertical 42CrMo Slewing Drive Gearbox Electric Gear Motor For Solar Tracking System

  • Vertical 42CrMo Slewing Drive Gearbox Electric Gear Motor For Solar Tracking System
  • Vertical 42CrMo Slewing Drive Gearbox Electric Gear Motor For Solar Tracking System
Vertical 42CrMo Slewing Drive Gearbox Electric Gear Motor For Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE5"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Slewing Reducer: VE5"
Gear Ratio: 37:1 Application: Solar Tracker
Motor: Electric Gear Motor Warranty: 10 Years
Certificate: ISO9001, CE Duty Cycle: 30 Years
High Light:

electric gear motor Slew Gearbox

,

42CrMo Slew Drive Gearbox

,

Slew Gearbox For Solar Tracking System

Vertical Small Slewing Drive Gearbox For Solar Tracking System



Small Slewing Drive Gearbox Description



The slewing drive device is a full-circumferential slewing deceleration transmission mechanism that integrates a driving power source. It uses a slewing bearing as a transmission follower and a mechanism attachment. The other ring is used as both a transmission follower and a connection base for the driven working part, so that the slewing bearing itself is a full-circumference slewing connection, and the driving power source and the main drive are efficiently configured. It is a universal deceleration transmission mechanism that integrates the functions of rotation, deceleration and driving, and at the same time has a simple structure and is convenient to manufacture and maintain.



Performance Parameters of VE Series



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244



Vertical 42CrMo Slewing Drive Gearbox Electric Gear Motor For Solar Tracking System 0



Applications



The slewing drive device can be used in any occasion that requires full-circle rotation and requires variable speed. When it is necessary to realize the power transmission of large torque, high-precision motion transmission or the selection of the mechanism with high requirements for compact body structure and integration, the slewing Drivers are the best solution.
The more common applications are generally engineering and construction machinery, as well as solar energy, wind energy and various long-term automatic tracking machinery.
