Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE7 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~380/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Type: | Worm Gear VE7 | Material: | 42CrMo Or 50Mn |
|---|---|---|---|
| Warranty: | 5~10 Years | Size: | 3 Inch To 25 Inch |
| Type Of Tooth: | Helical Tooth | Motor: | 12V/24V DC Motor |
| Color: | As Customers' Demand | Application: | Solar Tracking System |
| High Light: | Helical Tooth Enveloping Slew Drive Gearbox,VE7 Enveloping Slew Gearbox,Worm Gear Enveloping Slew Drive Gearbox |
||

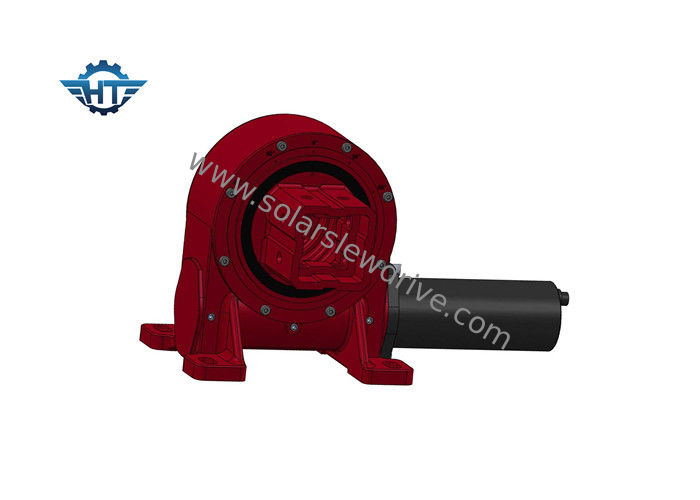

VE7 Worm Gear Enveloping Slewing Drive For Vertical Single Axis Solar Tracking System
Description
Hangtuo’s slewing drives employ precision technology which can provide a large ratio in a single stage of gearing. The worms and gears are assembled into a low profile, self-retaining, and ready-to-install housing. We have the capability to provide custom solutions for specific applications.
Features
These highly-adaptable products also feature strong shock resistance, long life performance, smooth rotation, bearing protection, and sealed drive options.
1. Our slewing drives are designed for long life, working in hard environment conditions
2. Various sizes available, including customized
3. Easy to install and 10 years' product warranty
Our Services
1. Any inquiries will be replied within 12 hours
2. We're professional manufacturer
3. OEM/ODM available
1). Customized design
2). Customized dimension
3). Customized package
4. High quality, reasonable & competitive price, fast lead time.
5. After-Sale Service
1) All products will have been going through strictly quality checked in warehouse before package
2) All products will be well packed before shipping
3) All our products have 10 years warranty
6. Faster Delivery
Sample order in stock, and 7-45 days for bulk production
7. Shipping
By boat, By air or other express etc.
Technical Data
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
FAQ
In order to help you get the right type of slewing drives to install on your solar tracking system, please offer the following necessary information:
1. The dimension of the solar panel (L*W*T)
2. The arrangement of the PV array
3. The order quantity for us to confirm delivery and shipping
For more information, please feel free to contact us.
