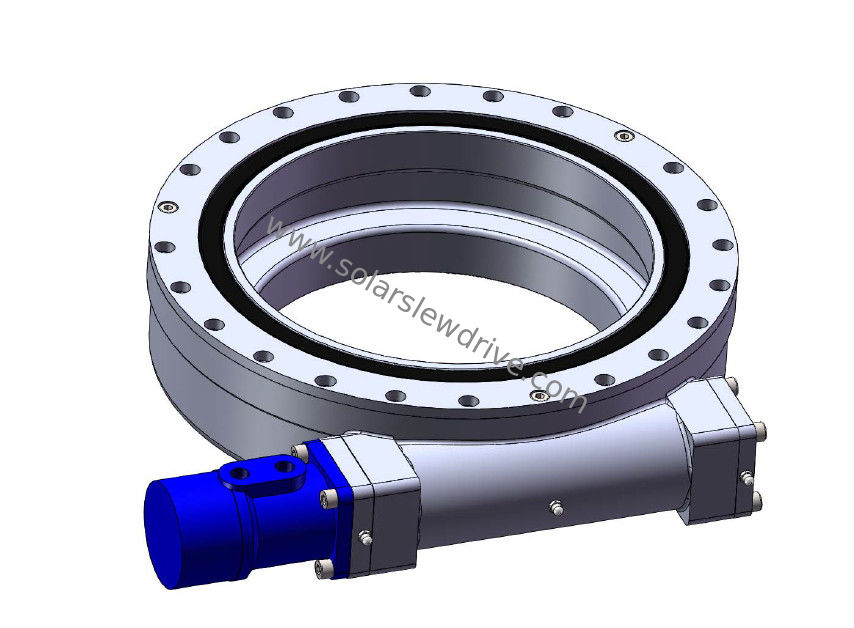

Se14 High Load Hydraulic Slew Drive For Self Propelled Modular Transporter

Se14 High Load Hydraulic Slew Drive For Self Propelled Modular Transporter

  • Se14 High Load Hydraulic Slew Drive For Self Propelled Modular Transporter
  • Se14 High Load Hydraulic Slew Drive For Self Propelled Modular Transporter
Se14 High Load Hydraulic Slew Drive For Self Propelled Modular Transporter
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE14"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: SE14"
Gear Ratio: 85:1 Rated Output Torque: 6550Nm
Holding Torque: 68000Nm Tilting Torque: 54200Nm
Efficiency: 40% Standard Color: RAL 9006
Axial Load: 680 KN Radial Load: 230 KN
High Light:

high load hydraulic slew drive

,

se14 hydraulic slew drive

,

hydraulic dual axis slew drive

Product Description



Self-propelled hydraulic flatbed application

The SPMT is short for Self-propelled modular transporter and is known as the self-propelled module transporter, also known as the self-propelled hydraulic flatbed. Mainly used in heavy, large, high, special structure transport, its advantages are mainly flexible, easy loading and unloading, according to the volume and weight of the carrier, series parallel free combination, the maximum transport record of more than 15,000 tons. SPMT is widely used in equipment manufacturing, petroleum, chemical, offshore oil, bridge construction and other fields.



"Cross-car" for short. A special machinery used in container terminals or on a yard. It can be used for container horizontal handling, as well as as yard yard code, and as a variety of vehicles for replacement, is a multi-purpose machinery. When transporting horizontally, the speed is generally 23 km/h; Up to 32 km. It is characterized by good mobility and small swing radius of the vehicle; There are single, double, three- and four-tier cross-carriages with heap capacity. The illustration shows that single-layer cross-transport vehicles are mainly used for horizontal handling, can not be stacked containers, but can be replaced on the chassis car or railway vehicles, its stability is better, the speed can be improved.



Features



1. Tooth type: Helical tooth
2. Bearing load: light load
3. Drive type: Motor drive

4. Module: 5/3.75
5. Number of worm shafts: 1
6. Gear Ratio: 85: 1
7. Efficiency: 40%
8. Self-locking gears: YES
9 Weight: 63 kg



Se14 High Load Hydraulic Slew Drive For Self Propelled Modular Transporter 0



Tilting Moment Torque: This torque is the gravity load multiplied by distance between the position of load and the center of slewing bearing. If the actual torque is greater than the rated tilting moment torque, slewing drive will be overturned.

Radial load: The load vertical to the axis of slewing bearing

Axial load: The load parallel to the axis of slewing bearing

Holding torque: It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque, it is also seen as broken torque.

Self-locking: Only when there is load, the slewing drive is not able to reverse rotate and thus called self-locking.



Technical Data



SE Model Performance Parameters
Model Rated Output Torque (N.m) Holding Torque (N.m) TiltingTorque (N.m) Axial Load (kN) Radial Load (kN) Ratio Effeciency Precision (degree) IP Working Temp.(℃) Self-locking Weight (kg)
1" 400 1000 1800 22 12 28:1 43% ≤0.1 66 -30~+120 Yes 6
3" 600 1500 3000 30 16 31:1 43% ≤0.1 66 -30~+120 Yes 8
5" 800 6000 4700 68 27 37:1 43% ≤0.1 66 -30~+120 Yes 12
7" 2000 13500 7100 132 58 57:1 43% ≤0.1 66 -30~+120 Yes 21
9" 4400 45000 30800 340 130 61:1 43% ≤0.1 66 -30~+120 Yes 49
12" 5800 54400 40560 480 190 78:1 43% ≤0.1 66 -30~+120 Yes 61
14" 6550 68000 54200 680 230 85:1 43% ≤0.1 66 -30~+120 Yes 63
17" 9400 135600 65040 980 390 102:1 43% ≤0.1 66 -30~+120 Yes 105
21" 16000 203400 81000 1600 640 125:1 43% ≤0.1 66 -30~+120 Yes 149
25" 21000 271160 89000 2400 950 150:1 43% ≤0.1 66 -30~+120 Yes 204



Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.





Contact Details
Changzhou Hangtuo Mechanical Co., Ltd

Contact Person: Jessie

Tel: +86 18800586965

Send your inquiry directly to us
Changzhou Hangtuo Mechanical Co., Ltd
NO.628, HONGMEI STREET, TIANNING DISTRICT, CHANGZHOU, JIANGSU. CHINA
Tel:86--18800586965
