Place of Origin: | China |
Brand Name: | HangTuo |
Certification: | CE, ISO9001 |
Model Number: | SE7 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 100~1200/ pc |
Packaging Details: | plywood box |
Delivery Time: | 15~45 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Material: | 50Mn, 42CrMo | Model: | 7 Inch |
---|---|---|---|
Gear Ratio: | 57:1 | Efficiency: | 40% |
Precise: | ≤ 0.1 | Driver: | Hydraulic Motor |
Color: | Requested | Type: | Single Axis |
Highlight: | hydraulic slew motor,solar tracker drive |

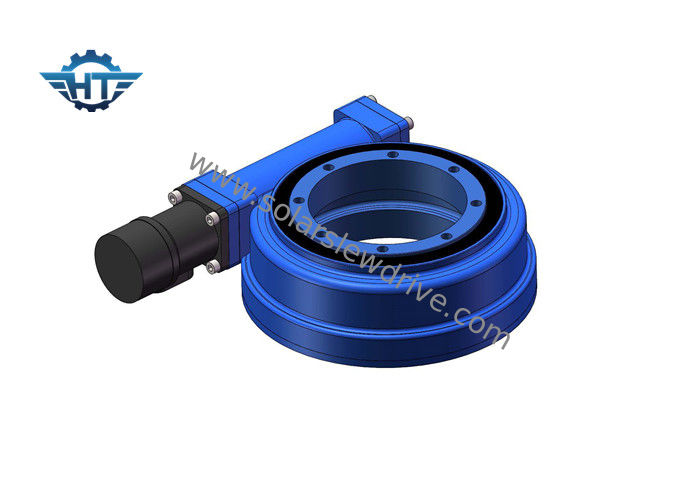

SE9 Slewing Bearing Drive With Hydraulic Slew Motor For Solar Tracker Or Platform Truck
Product Description
The slewing bearing drives are powered with hourglass worm technology to give maximum survivability load-holding as well as increased efficiency and accuracy.
There are many other applications as the slewing bearing drive is perfect for applications requiring both load-holding and rotational torque from the same gearbox and suitable for slow rotation with continuous or cyclical movements. It is suitable for solar tracker, models such as single axis and dual axis, which can be applied in flat single axis solar tracking system, oblique or tilted single tracking system and dual axis solar tracking system, and also in industries as engineering machinery, construction machinery and metallurgy, automated assembly line equipment, solar power, platform truck, environmental protection equipment, wind power generation and casting machinery, as well as various slow revolving machinery equipments.
Parameters of SE Slewing Drive
Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Our Service
We delivers custom-engineered solutions to various customers, according different requirement. We also manufacture and supply slewing bearing drives with high precision for special purpose requirements. Such as CPV and CSP.
We are committed to keeping the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price. We will always try our best to meet our customer’s growing demands. We will be your support throughout the design, manufacturing and implementation process.
