Place of Origin: | China |
Brand Name: | HangTuo |
Certification: | CE, ISO9001 |
Model Number: | SE7 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 280~504 / pc |
Packaging Details: | plywood box |
Delivery Time: | 15~45 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Model: | 7 Inch | Gear Ratio: | 57:1 |
---|---|---|---|
Efficiency: | 40% | Precise: | Less Than 0.1 Degree |
Driver: | Electric Motor/hydraulic Motor/servo Motor | Type: | Vertical Mounted |
Application: | Industrial And OEM Applications | Color: | As Requested |
Highlight: | worm gear slew drive,slewing ring gear |

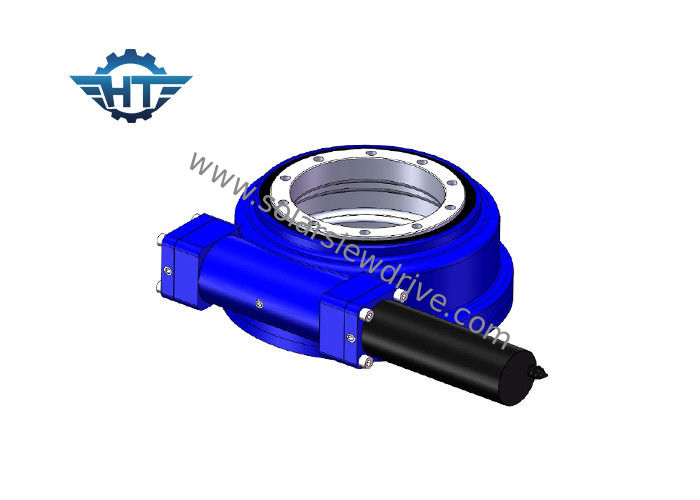

SE7" Worm Gear Drive With Excellent Backlash With Reducer Motor For Parabolic Concentrated Station
Product Description
The product can be used for flat-panel transporter, crane, and single column crane, lift lifting, with car crane, aerial vehicle, day cruise solar energy, automation equipment and other mechanical equipment. In the solar photovoltaic power generation industry, slew drives are generally equipped with DC planetary motor or AC reducer motor, and the hydraulic motor is used as the power drive system on the construction machinery.
The size of the slew drive is different, and its specification model is divided based on the approximate raceway diameter of the slew bearings: WD-080, WD-0130, WD-0170, WD-0223, WD-0343, WD-0419, WD-0478, WD-0625 and other specifications. The naming standard of the domestic model is according to the approximate raceway diameter of the slew bearings, in inches (1 inch =25.4mm), is divided into: SE3, SE5, SE7, SE9, SE12, SE14, SE17, SE21, SE25 and other specifications. The "WD" representative in the foreign model callout means: the abbreviation of Worm and drive, and the "SE" in the domestic model callout: the abbreviation of Slewing and Enclose. Regardless of the method of naming, the corresponding mounting dimensions and performance parameters of each model are the same.
Parameters of SE Slewing Drives
Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
