OEM SDE5 Planetary Drive Slewing Drive With Small Backlash For Satellite Antenna And CSP

OEM SDE5 Planetary Drive Slewing Drive With Small Backlash For Satellite Antenna And CSP

  • OEM SDE5 Planetary Drive Slewing Drive With Small Backlash For Satellite Antenna And CSP
  • OEM SDE5 Planetary Drive Slewing Drive With Small Backlash For Satellite Antenna And CSP
OEM SDE5 Planetary Drive Slewing Drive With Small Backlash For Satellite Antenna And CSP
Product Details:
Certification: CE, ISO9001
Model Number: SDE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Place Of Origin: China Brand Name: Hangtuo
Material: 50Mn, 42CrMo, QT Model: SDE 7
Gear Ratio: 57:1 Output Torque: 0.8 KNm
Holding Torque: 6 KNm Tilting Torque: 9.2 KNm
High Light:

slew drive motor

,

worm gear slew drive

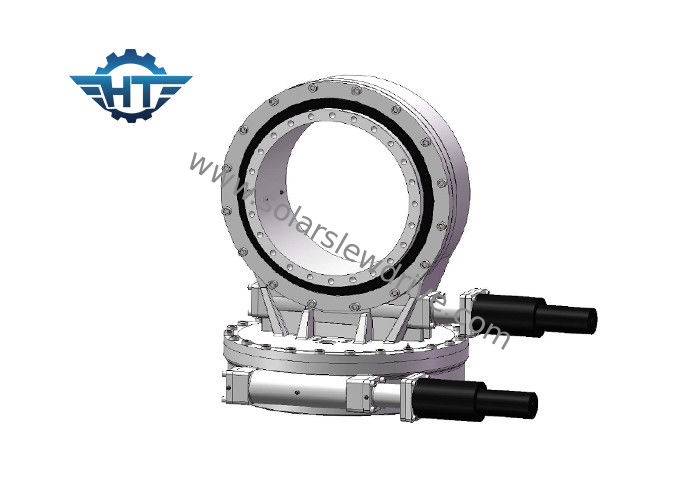

OEM SDE5 Dual Axis Slew Drive Gearbox With Small Backlash For Satellite Antenna And CSP

Description

SDE slewing drive application area


Our SDE series slewing drive mainly used for PV, STP, CSP solar tracking systems.



Our other types of slewing drives are widely used for construction applications, such as truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications, heavy load transporters, bridge inspection equipment, telescopic working platform, basket rotator requirements, yacht crane, cement mixer, excavator, etc. We can also provide multiple size of slewing drive and slewing berarings, hydraulic motor & DC Motor to match with slewing drives. Products have been exported to all over the world.



OEM SDE5 Planetary Drive Slewing Drive With Small Backlash For Satellite Antenna And CSP 0

OEM SDE5 Planetary Drive Slewing Drive With Small Backlash For Satellite Antenna And CSP 1



Key Features



1. Ready-to-install system with integrated gear and worm, easy to integrate into existing applications

2. Reduced maintenance costs

3. Compact packages for space saving installations

4. Available with flanges for all standard electric motors and hydraulic motors

5. Worm driven

6. IP66 sealing grade

7. Modular construction allows very quick modifications

8. Extended life-Housing which completely encloses the gearing (grease reservoir, protection against contamination and contact)

9. Maximum load capacity in compact design



Performance Chart of SDE Slewing Drive



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Installation Instructions-combination



1. Horizontal installation & Vertical installation.

2. Tow single sleiwng drives can achieve dual axis slewing drive systems.

3. One dual axis slewing drive can achieve dual axis slewing drive systems.

4. One slewing drive with one linear actuator can also achieve dual axis slewing drives.
