Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE 21" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | 50Mn, 42CrMo, QT | Gear Ratio: | 125:1 |
|---|---|---|---|
| Rated Output Torque: | 16 KNm | Holding Torque: | 89 KNm |
| Tilting Torque: | 65 KNm | Standard Color: | RAL 9006 |
| Backlash: | Less Than 0.1 Degree | Rotating Type: | Double Axis |
| High Light: | worm gear slew drive,slewing ring gear |
||

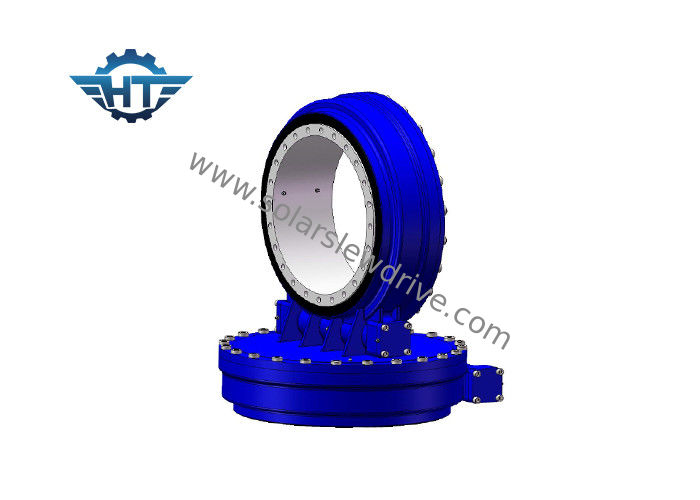

IP66 Envelope Worm Planetary Slew Drive Gearbox For Photovoltaic Solar Tracking System
Description
A slewing drive is usually composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc. While used in photovoltaic power generation system, the slewing drive is usually used in combination with DC planetary speed reducer motor and AC speed reducer motor. While used in engineering equipment, it is regularly used in combination with hydraulic motor to function as power driving system.
A slewing drive is also called slewing gear drive or slewing reducer, etc. It is typically used in solar power systems, wind turbines, satellite system, and engineering machinery like truck cranes, man lifts, etc. Now it has been prosperously used in photovoltaic tracking systems.
When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels. Broadly speaking, 3 inch slewing drive is suitable for solar power system coming with 3- 5 m2 solar panel, 7 inch for 10-17 m2 solar panel, 9 inch for 18-30 m2, 12 inch for 31-45 m2, and 14 inch for 46-60 m2. These are provided for your reference. For more specific and detailed information, please feel free to contact our sales person at the contact page.
Product Advantages
1) Higher output torque and holding load
2) Top tracking precision
3) Strong corrosion resistance and sealing effective
4) Self-locking
Application
SDE3,SDE7,SDE21 dual axis slewing drive for solar tracking system
Precision instruments
CPV
Dish
Satellite Antenna
SDE Model Performance Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Application Fields
| Wind Power Field | Metallurgical Machinery |
| Light Industry | Heavy Equipments |
| Port/Marine Machiner | Military Products. |
| Construction Machinery Mining | Steel Works Equipment |
| Sewage Treatment Plant | Agricultural Machinery |
