Providing Innovative and Cost-effective Slewing Drives

|
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE17" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | SE17" |
|---|---|---|---|
| Gear Ratio: | 102:1 | Rated Output Torque: | 9450Nm |
| Tilting Torque: | 203kNm | Efficiency: | 40% |
| Color: | RAL 9006 Or As Requested | Load Capacity: | High |
| Highlight: | slew drive motor,worm gear slew drive |
||

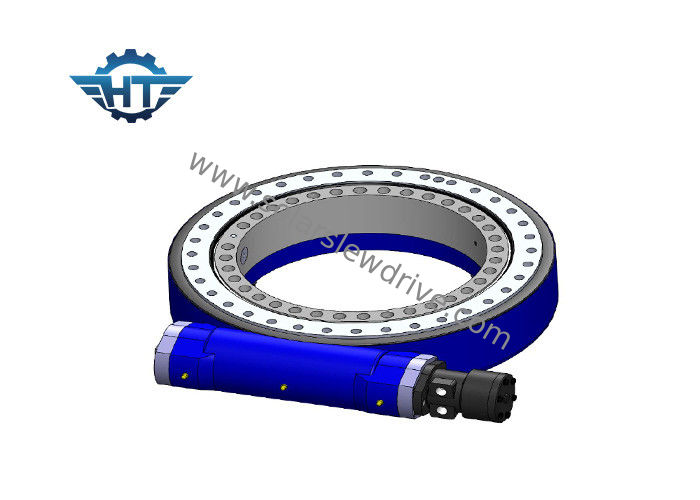

Horizontal Mounted SE17 Slew Drive Gearbox With 380 Servo Motor For Mist Cannon Truck
Description
Rated Output Torque: 9.45 kN.m
Tilting Moment Torque: 203 kN.m
Axial Load: 980kN
Radial Load: 390kN
Holding Torque: 53kN.m
Gear Ratio:102:1
Tracking Precision: ≤0.15
Self-locking gears: Yes
Weight: 85kg
Changzhou Hangtuo Machinary Co.,ltd is a professional manufacturer and exporter of slewing bearing/slewing ring/slew circle, slewing drives/slew drive, which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, single or dual axis solar tracking systems, and small wind power systems etc.
Parameters of SE Slewing Drive
| Type | 3’’ | 5’’ | 7’’ | 9’’ | 12’’ | 14’’ | 17’’ | 21’’ | 25’’ |
| Rated output torque/kN.m | 0.3 | 0.6 | 1.75 | 4.3 | 5.6 | 6.75 | 9.46 | 16 | 21.45 |
| Tilting moment torque/kN.m | 1.5 | 6 | 10.5 | 49.9 | 54.4 | 135 | 203 | 271 | 346 |
| Axial load/kN | 30 | 68 | 132 | 340 | 480 | 680 | 980 | 1600 | 2400 |
| Radial load/kN | 15 | 27 | 58 | 130 | 190 | 230 | 390 | 640 | 950 |
| Gear ratio | 31:1 | 37:1 | 57:1 | 61:1 | 78:1 | 85:1 | 102:1 | 125:1 | 150:1 |
| Self-locking | yes | yes | yes | yes | yes | yes | yes | yes | yes |
| Weight/kg | 7 | 14 | 23 | 44 | 51 | 62 | 85 | 141 | 182 |
| Suitable Panel Area/m2 | 3-5 | 6-9 | 10-17 | 18-30 | 31-45 | 46-60 | 61-95 | 96-120 | 120-165 |
Advantages
1. Strong overturning moment
2. Adopt enveloping worm drive
3. Multi tooth contact, high load capacity
4. Self-locking function
Q&A
1. How to choose?
Please specify the diameter size, width, voltage, power and no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the suitable gear motors
4. How do you ship samples?
The sample quantity is not big, we support ship samples by UPS, TNT or Fedex
5. What's your minimum order quantity?
1 set
6. What's your delivery time?
For standard samples: within 0~7 days; for batch orders: within 25~45 days.
