Providing Innovative and Cost-effective Slewing Drives
 |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE1 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Place Of Origin: | Changzhou, China | Material: | 50Mn, 42CrMo |
|---|---|---|---|
| Model: | SE1 | Gear Ratio: | 31:1 |
| Efficiency: | 40% | Color: | As Requested |
| Application: | CPV, CSP, PV | Driver: | 12/24VDC Motor |
| Certificate: | ISO9001, CE | Self-lock: | Yes |
| High Light: | worm gear slew drive,slewing ring gear |
||

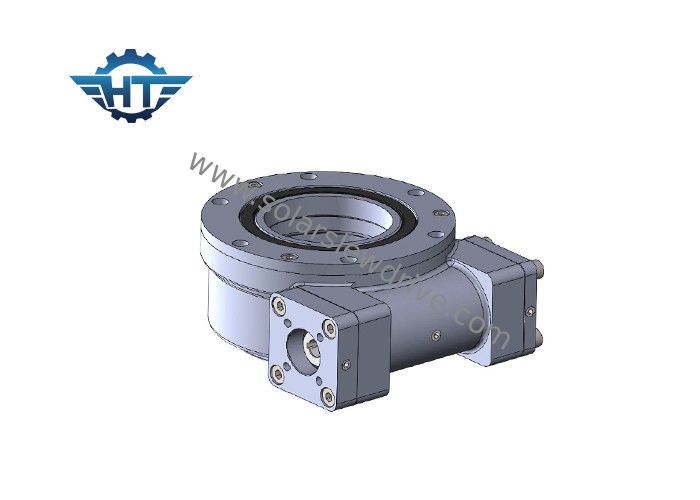

SE1 Slew Drive Gearbox With Small Gear Motor For Automatic Solar Tracking System And CSP
Description
For slewing drive, usually called slewing bearing or slewing ring, is consists of worm, gear, housing, end cap, top plate, motor and other components. Since the core components are worm and gear, they can withstand axial forces, radial forces and overturning moments at the same time. Compared with the traditional rotary products, the new slewing drive is convenient to install, maintain and install. slewing drives are widely used in PV solar tracking systems, CPV, CSP and building applications, including truck cranes, lifts, turntables, port machinery, vehicles, small wind power systems and satellite antenna. There are 11 different sizes available from 1" to 25" with more than 60 models to meet both regular and precise tracking requirements in PV, CPV and CSP(thermal power, tower, fresnel, heliostat) tracking fields.
Performance parameters of SE series
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
| 1" | 31:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3" | 31:1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | Yes | 9 |
| 5" | 37:1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 14 |
| 7" | 57:1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 23 |
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62 |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85 |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141 |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182 |
Installation
SE1 slewing drives could be installed both vertically and horizontally.
It is advised to mount the slewing drives horizontally upside in solar or mechinery applications for better protection. If needed, it could be also mounted vertically, but need addtional supporters.
Applications
solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
