| Brand Name: | HangTuo |
| Model Number: | VE9" |
| MOQ: | 1 piece |
| Price: | USD 280~504 / pc |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |

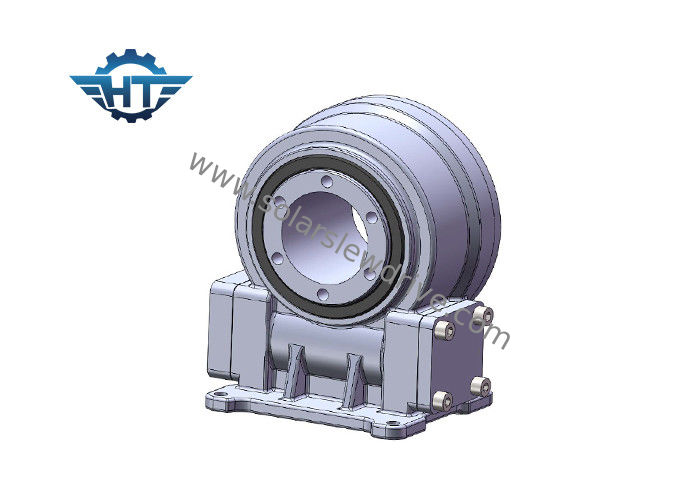

Gear Ratio 61 / 1 Vertical Worm Gear Slew Ring With Nema 34 And Motor Driver For CPV And CSP
Product Description
Function
Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear, in general, the shaft is driven by electric gear motor.
Gear ratio
The rotation of the horizontal worm turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven member and also multiplies its torque; increasing it proportionally as the speed decreases.The speed ratio of shafts depends upon the relation of the number of threads on the worm to the number of teeth in the worm wheel or gear.
Technical Parameters of VE9 Slewing Drive
| Model | VE9 | Place of Origin | Changzhou,China |
| Brand | HANGTUO | Type | Enclosed |
| Material | 42CrMo,50Mn | Output Torque | 4300 N.m |
| Tilting Moment Torque | 16 K N.m | Holding Torque | 27.2 K N.m |
| Static Axial Rating | 60 KN | Static Radial Rating | 130 KN |
| Dynamic Axial Rating | 30 KN | Dynamic Radial Rating | 65 KN |
| Gear Ratio | 61:1 | Efficiency | 40% |
Applications
solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
