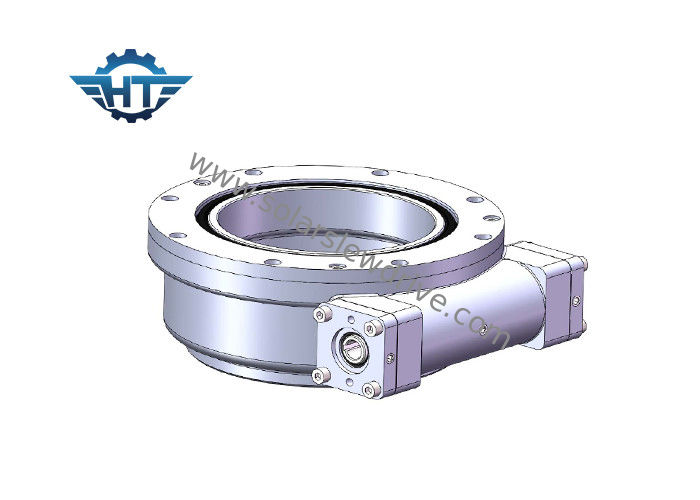

Enclosed IP66 CE Certified Hydraulic Slew Drive With Compact Design And Self Locking Feature

Enclosed IP66 CE Certified Hydraulic Slew Drive With Compact Design And Self Locking Feature

  • Enclosed IP66 CE Certified Hydraulic Slew Drive With Compact Design And Self Locking Feature
Enclosed IP66 CE Certified Hydraulic Slew Drive With Compact Design And Self Locking Feature
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE 7
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Gear Ratio: 57:1 Type: Enclosed
Application: Construction Machinery And Solar Energy Driver: Hydraulic Motor And Electric Motor
IP Grade: IP66, IP65 Color: As Requested
Effciency: 40% Install Method: Horizontal
High Light:

hydraulic slew motor

,

slewing gear

Description



The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis or in multiple axes together. Slewing drives are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox.



Zero backlash slewing drive is a special slewing drive with its gear and worm having a perfect mesh and also has reasonable gaps of lubrication and operating heating.



Performance parameters of SE series



Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182



The main advantages of SE slewing drives



1. Rotation 360 degrees

2. Connection of a driving motor from the left or right side

3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

4. Grease had been filled before factory

4. Simple installation and low maintenance

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping

8. High tilting torque, suitable for horizontal installation
