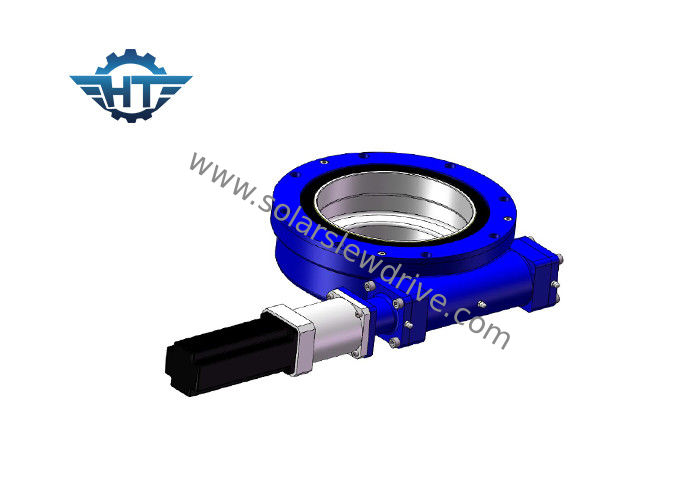

Compact Structure 360 Degree Rotation Hydraulic Slew Drive With High Effectiveness Performance

Compact Structure 360 Degree Rotation Hydraulic Slew Drive With High Effectiveness Performance

  • Compact Structure 360 Degree Rotation Hydraulic Slew Drive With High Effectiveness Performance
Compact Structure 360 Degree Rotation Hydraulic Slew Drive With High Effectiveness Performance
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Gear Ratio: 61:1 Type: Enclosed
Application: Harbor Machinery OEM Service: Available
Driver: Hydraulic Motor IP Grade: IP66, IP65
Color: As Requested Accuracy: Less Than 0.01 Degree
High Light:

hydraulic slew motor

,

solar tracker drive

Description



Our slewing drives come in a variety of model sizes from 1 inch to 25 inches, performance ranges from 0.3 to 21 kNm. We also have slewing drives of different backlash. The drives are well suited for applications that require both load holding and rotational torque from the same gear box. They can also be made with dual axes of rotation, (turning axes at the same time) or with dual drives on the same axis, (two worm threads driving the same ring gear in one axis), and can be mounted vertically, horizontally or both.



Horizontal Series

Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182



Features



The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis or in multiple axes together.
