| Brand Name: | HangTuo |
| Model Number: | SE 7 |
| MOQ: | 1 piece |
| Price: | USD 280~504 / pc |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |

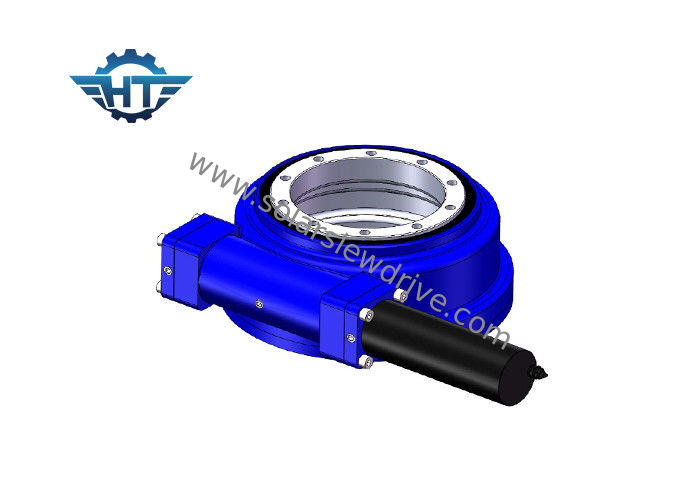

Our SE slewing ring uses worm gear, the surface of slewing ring has better protective capability, and salt bath compound is processed for teeth, at the same time, this surface hardening technology also strengthen the wear-resisting property and corrosion prevention of the teeth. So the deformation of gear is minimized and the precision is high.
SE Performance Data
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
| 1" | 31:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3" | 31:1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | Yes | 9 |
| 5" | 37:1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 14 |
| 7" | 57:1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 23 |
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62 |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85 |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141 |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182 |
Advantages:
1. Better protective performance
2. The oil seal can prevent the grease leaking effectively
3. The framework oil seal keeps shape and tension and guarantees the continuous and effective running of transmission part.
4. The oil seal is high heat-resisting and wear-resisting performance.
