IP66 Heavy Duty Slew Drive Gearbox for Single-Axis Solar Tracker Systems
Product Description

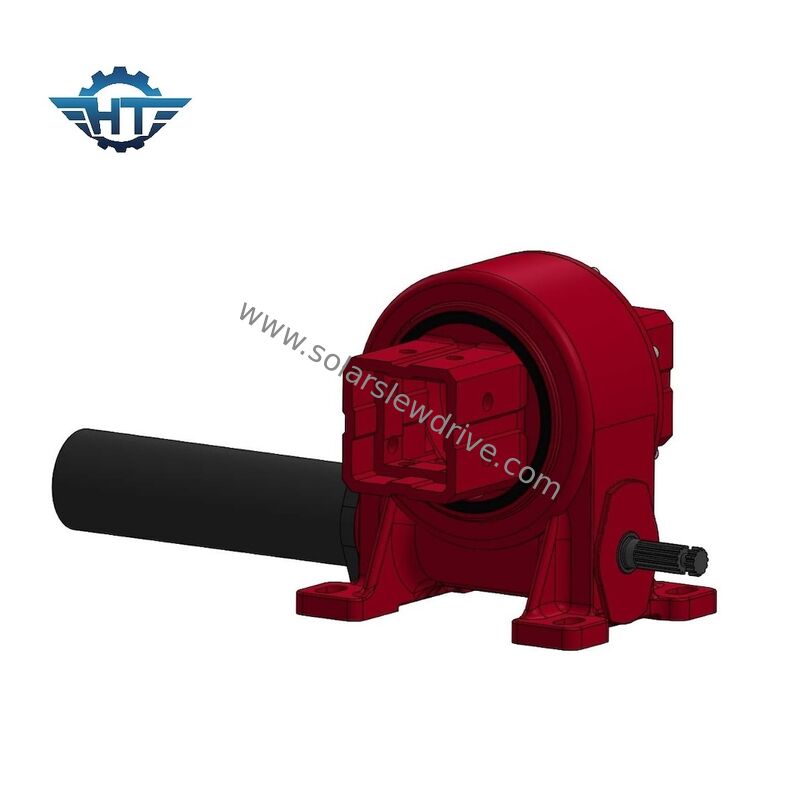

The HANGTUO VE Series Heavy Duty Slew Drive Gearbox is engineered specifically for single-axis solar tracking systems in utility-scale photovoltaic installations. Featuring IP66 environmental protection and self-locking worm gear design, this enclosed slewing drive delivers reliable, precision positioning performance throughout the 25+ year lifespan of modern solar projects.
Key Features
IP66 Rated Enclosure: Complete protection against dust ingress and powerful water jets for all-weather operation
Self-Locking Design: Eliminates external brake requirements; maintains position during power outages
High Precision Positioning: ≤0.1° accuracy for optimal solar energy capture
Integrated Hard Stops: ±60° rotation with mechanical limits for software failure protection
Pre-Set Gear Clearance: Factory-calibrated for immediate installation without field adjustment
Flexible Motor Mounting: Left or right side motor connection options
Smooth Operation: Easy starting and stopping reduces mechanical stress
Technical Specifications
VE10 Model (Featured)
|
Parameter |
Specification |
|---|---|
|
Gear Ratio |
100:1 |
|
Rated Output Torque |
16,000 N·m |
|
Tilting Moment Torque |
12 kN·m |
|
Holding Torque |
70 kN·m |
|
Static Axial Load |
110 kN |
|
Static Radial Load |
220 kN |
|
Dynamic Axial Load |
54 kN |
|
Dynamic Radial Load |
110 kN |
|
Efficiency |
40% |
|
Precision |
≤0.15° |
|
Self-Locking |
Yes |
Other Models of VE Series
|
Model |
Ratio |
Output Torque |
Tilting Torque |
Axial Load |
Radial Load |
Holding Torque |
Weight |
|---|---|---|---|---|---|---|---|
|
3" |
31:1 |
300 N·m |
1,500 N·m |
3.6 kN |
15 kN |
7,000 N·m |
13 kg |
|
5" |
37:1 |
637.5 N·m |
5,000 N·m |
16 kN |
27 kN |
9,200 N·m |
18 kg |
|
7" |
57:1 |
1,750 N·m |
7,000 N·m |
34 kN |
58 kN |
13,200 N·m |
28 kg |
|
8" |
51:1 |
2,250 N·m |
11,200 N·m |
50 kN |
80 kN |
20,400 N·m |
35 kg |
|
9" |
61:1 |
4,300 N·m |
16,000 N·m |
60 kN |
130 kN |
27,200 N·m |
51 kg |
|
12" |
78:1 |
5,600 N·m |
25,000 N·m |
77 kN |
190 kN |
40,560 N·m |
61 kg |
|
14" |
85:1 |
6,750 N·m |
48,000 N·m |
110 kN |
230 kN |
44,200 N·m |
78 kg |
|
17" |
102:1 |
9,460 N·m |
67,000 N·m |
142 kN |
390 kN |
53,040 N·m |
105 kg |
|
21" |
125:1 |
16,000 N·m |
89,000 N·m |
337 kN |
640 kN |
65,000 N·m |
185 kg |
|
25" |
150:1 |
21,450 N·m |
112,000 N·m |
476 kN |
950 kN |
89,000 N·m |
244 kg |
Construction & Materials
Housing: High-strength cast iron with corrosion-resistant coating
Gearing: Precision-machined 42CrMo alloy steel
Slewing Bearing: 50Mn forged steel with hardened raceways
Sealing: IP66-rated multi-lip seals for complete environmental protection
Lubrication: Factory-filled with high-performance synthetic grease
Applications
Single-axis solar tracking systems
Utility-scale photovoltaic installations
Commercial and industrial solar projects
Agricultural solar tracking arrays
Remote and harsh environment installations
Installation Advantages
Ready to Install: Pre-assembled and pre-calibrated at the factory
No Adjustment Required: Gear clearance set before shipment
Versatile Mounting: Compatible with major tracker frame designs
Simplified Wiring: Flexible motor positioning for optimal cable routing
Reliability & Maintenance
The VE Series slew drives are designed for minimal maintenance throughout their service life:
Sealed Construction: IP66 protection prevents contaminant ingress
Self-Locking: No brake maintenance required
Durable Materials: Hardened steel components resist wear
Long Service Life: Engineered for 25+ year solar installations
Technical Support
Our application engineering team provides comprehensive technical support including load calculations, model selection assistance, and customized recommendations for your specific solar tracking project requirements.
Contact us for pricing, technical specifications, and project-specific recommendations for your solar tracking system.
