Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | Changzhou |
| Brand Name: | HT |
| Certification: | CE, ISO9001 |
| Model Number: | VE |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Plywood |
| Delivery Time: | 7～15 days |
| Payment Terms: | T/T |
| Brake: | Not Needed | Product Surface: | Anti-rust Plastic Powder |
|---|---|---|---|
| Operating Temperature: | -40°C To +120°C | Feature: | Long Life And Self Locking |
| Slew Drive Deceleration: | Two-stage | Mounting Options: | Horizontal, Vertical Or Custom |
| Limited Warranty: | 3~10 Years | Grease Type: | Mobil EP-2 |
| High Light: | Compact Solar Slew Drive,slew drive for solar tracker,slewing drive for solar tracking system |
||

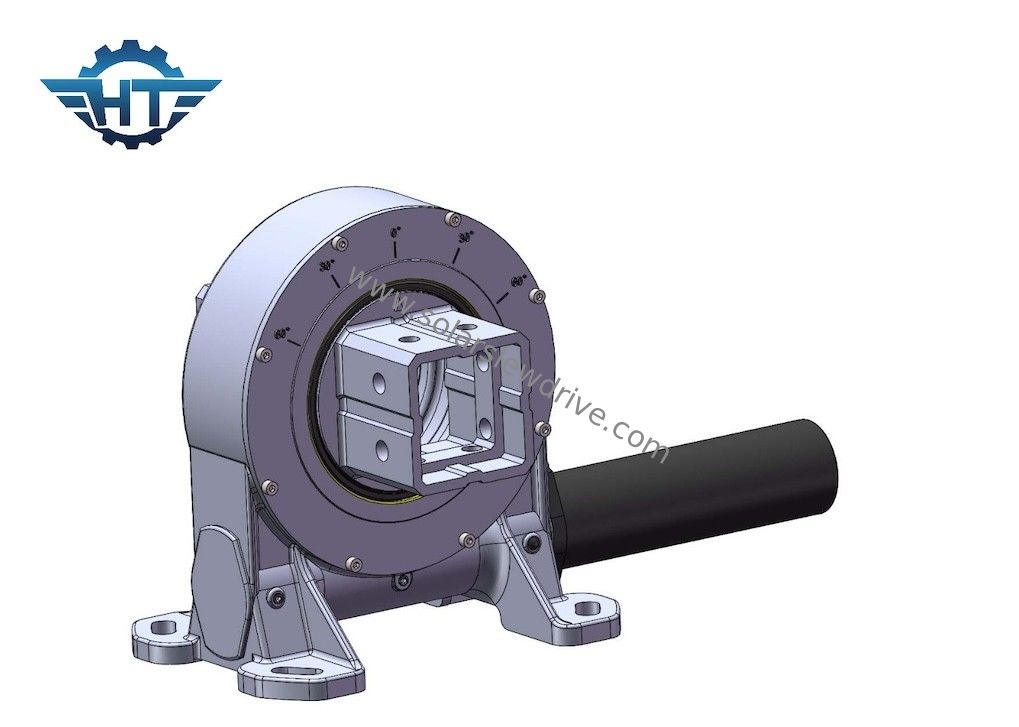

The Solar Slew Drive features a double enveloping worm gear design, providing high torque and efficiency. This design ensures smooth and stable motion, reducing wear and tear on the drive and extending its lifespan. The VE7 high strength solar tracker slewing drive is available in both horizontal and vertical mounting options, as well as custom configurations to suit your specific needs.
Whether you are looking to track the sun's movement for maximum energy output or ensure the optimal positioning of solar panels, the Solar Slew Drive is the ideal solution. With its advanced design, long lifespan, and reliable performance, this drive delivers exceptional value and performance for solar energy applications. Choose the Solar Slew Drive for your solar energy project and experience the benefits of a high-quality and dependable solution.
| Power Source | Planetary Gearbox |
| Feature | Long Life And Self Locking |
| Product Surface | Anti-rust Plastic Powder |
| Slewing Drive Gear Ratio | Up To 150:1 |
| Type Of Tooth | Helical Tooth |
| Maintenance | Add Grease Regularly |
| Operating Temperature | -40°C To +120°C |
| Slew Drive Material | QT700 |
| Brake | Not Needed |
| Slew Drive Deceleration | Two-stage |
The HT Solar Slew Drive is designed to operate in extreme temperatures ranging from -40°C to +120°C, making it suitable for a wide range of applications. The product has a self-locking feature, which ensures that the solar tracking system stays in place, even in high winds. The product also features a double enveloping worm, which provides a better load-bearing capacity and higher efficiency.
The HT Solar Slew Drive is ideal for use in solar tracking systems. It is particularly useful in 2 portrait solar tracking systems, where it provides smooth and reliable movement. The product is also suitable for use in other solar tracking applications, such as heliostats and concentrated photovoltaic systems.
The HT Solar Slew Drive is available in orange, gray, or other colors upon request. The product comes with a limited warranty of 3 to 10 years, depending on the specific model. This ensures that customers can use the product with confidence, knowing that it is backed by a reliable warranty.
The Solar Slew Drive is a high-precision rotational component designed for solar tracking systems. Our technical support and services for this product include the following:
- Assistance with product selection and sizing
- Installation guidance and support
- Troubleshooting and repair services
- Maintenance recommendations and support
- Customized design and engineering services
- Training and educational resources for optimal product use and performance
