Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | Changzhou |
| Brand Name: | HT |
| Certification: | CE, ISO9001 |
| Model Number: | VE |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Plywood |
| Delivery Time: | 7～15 days |
| Payment Terms: | T/T |
| Limited Warranty: | 3~10 Years | Slew Drive Material: | QT700 |
|---|---|---|---|
| Maintenance: | Add Grease Regularly | Product Surface: | Anti-rust Plastic Powder |
| Brake: | Not Needed | Field Life: | 30 Years |
| Feature: | Long Life And Self Locking | Power Source: | Planetary Gearbox |
| High Light: | Long Life Solar Tracking System,Slewing Drive Solar Tracking System,solar slew |
||
The Solar Slew Drive is commonly used in solar power plants, roofs, farms, and other installations that require a reliable and efficient tracking system. Its compact design and easy installation make it a popular choice among solar energy professionals.
To ensure the longevity and optimal performance of the Solar Slew Drive, it is recommended to add grease regularly. This maintenance helps to reduce wear and tear, prevent corrosion, and extend the lifespan of the component.
The Solar Slew Drive is available in various gear ratios, with options up to 150:1. This flexibility allows for customization to fit specific requirements and applications.
Overall, the Solar Slew Drive is a crucial component in a 2 portrait solar tracking system. Its reliability, efficiency, and durability make it a popular choice for solar power plants, roofs, farms, and other installations. With regular maintenance and the option for customizable gear ratios, the Solar Slew Drive is a great investment for any solar energy project.
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
| Field Life | 30 Years |
| Limited Warranty | 3~10 Years |
| Product Surface | Anti-rust Plastic Powder |
| Brake | Not Needed |
| Mounting Options | Horizontal, Vertical Or Custom |
| Slewing Drive Gear Ratio | Up To 150:1 |
| Slew Drive Deceleration | Two-stage |
| Type Of Tooth | Helical Tooth |
| Feature | Long Life And Self Locking |
| Grease Type | Mobil EP-2 |
The Solar Slew Drive is an ideal solution for a wide range of applications and scenarios. With its IP66 protection and enclosed design, it is perfect for use in harsh environments, such as those found in solar power plants, farms, and rooftops. The product is available in an orange or gray color, or as requested.

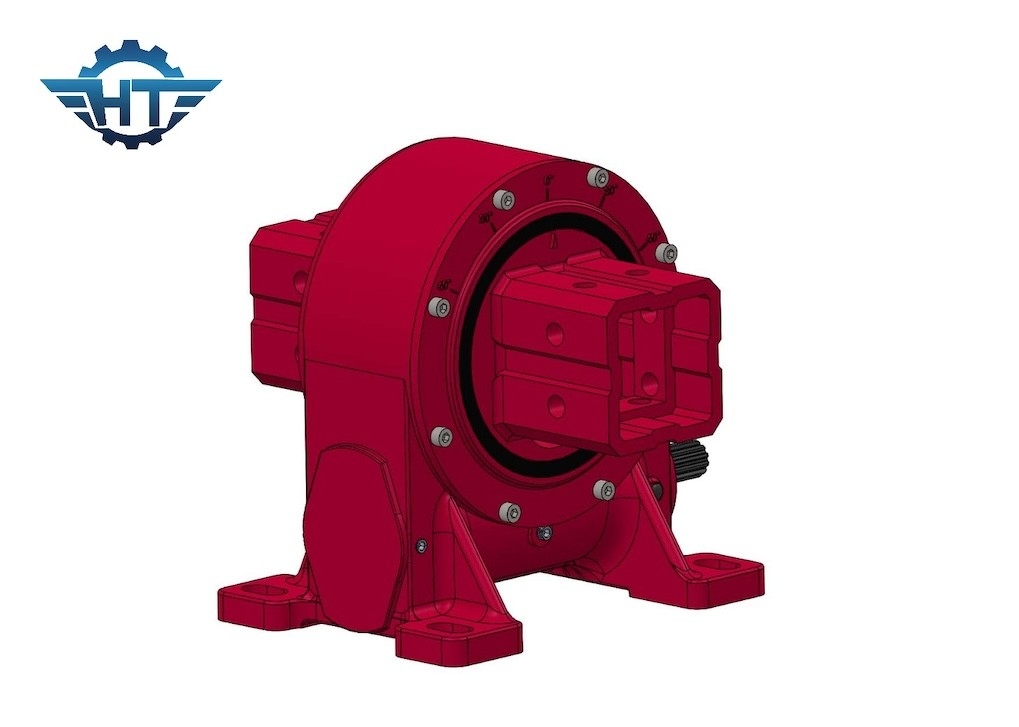

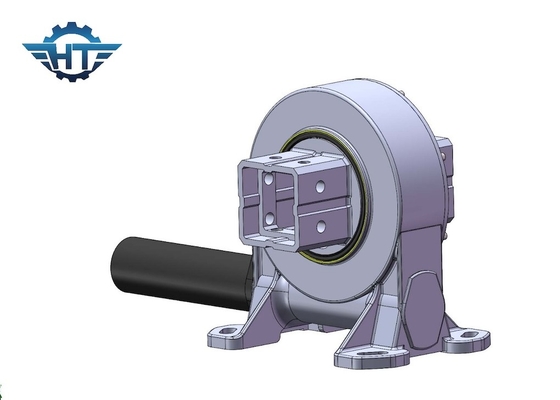

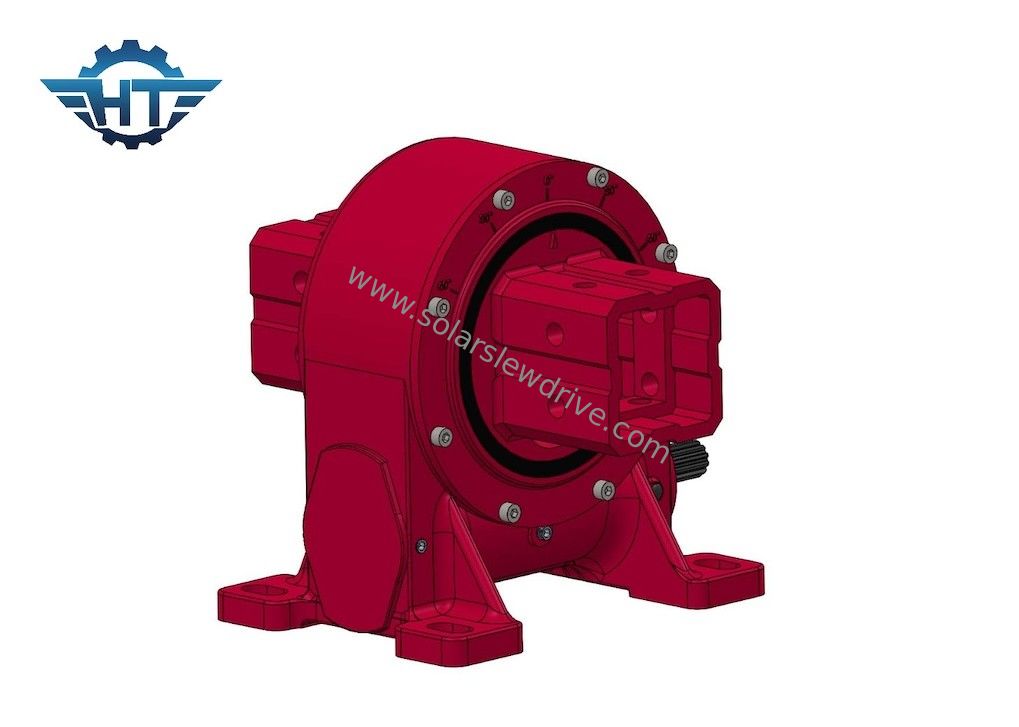

This product has a limited warranty of 3-10 years, ensuring that customers can rely on its durability and longevity. The HT Solar Slew Drive features a worm gearbox and a south to north moving slewing drive with a gear ratio of up to 150:1, making it perfect for use in PV trackers.
Overall, the HT Solar Slew Drive is an excellent product for those looking for a reliable, high-quality solution for their solar power needs. It is versatile and durable, making it ideal for a wide range of applications and scenarios. Its certification, packaging, and warranty ensure that customers can trust in its quality, while its gear ratio and enclosed design make it perfect for use in PV trackers.
The Solar Slew Drive is a high-quality product that is designed to offer reliable and efficient performance. To ensure optimal functionality, we offer technical support and services to our customers. Our team of experts is available to provide assistance with installation, maintenance, and troubleshooting of the Solar Slew Drive. We also offer repair services and replacement parts to ensure that the Solar Slew Drive continues to operate at peak performance. Our goal is to provide exceptional customer service and support to help our customers achieve success with their solar energy projects.
