Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | Changzhou |
| Brand Name: | HT |
| Certification: | CE, ISO9001 |
| Model Number: | VE |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Plywood |
| Delivery Time: | 7～15 days |
| Payment Terms: | T/T |
| Slewing Drive Gear Ratio: | Up To 150:1 | Grease Type: | Mobil EP-2 |
|---|---|---|---|
| Worm Feature: | Double Enveloping Worm | Type Of Tooth: | Helical Tooth |
| Product Surface: | Anti-rust Plastic Powder | Mounting Options: | Horizontal, Vertical Or Custom |
| Protection: | IP66, Enclosed | Self-Locking: | Yes |
| High Light: | Solar tracker drive,Photovoltaic slew drive,Helical Tooth Slewing Drive |
||

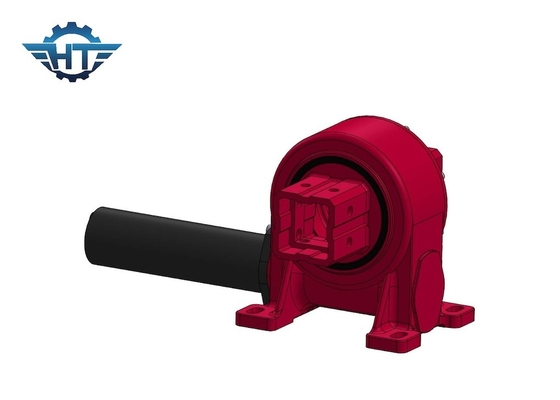

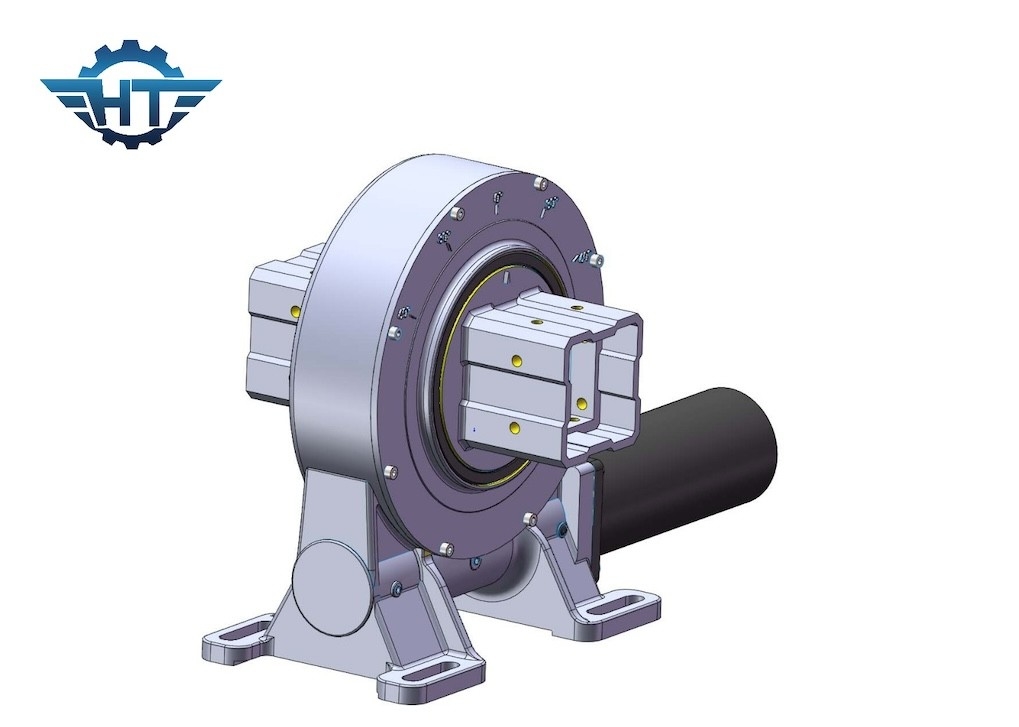

The VE7 high strength solar tracker slewing drive is available in a variety of colors, including orange, gray, or as requested by the customer. This allows you to choose the color that best matches your solar panel system or the surrounding environment.
The Solar Slew Drive is built to last, with a long life and self-locking feature that ensures it will continue to perform reliably for many years. It also comes with a limited warranty of 3-10 years, depending on the specific model you choose.
Overall, the Solar Slew Drive is an essential component of any solar panel tracking system, providing the necessary azimuth and elevation tracking capabilities to ensure that the panel is always facing the sun. With its self-locking feature and helical tooth type, you can be confident that your solar panel will remain securely in place, even in challenging outdoor conditions.
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
| Type Of Tooth | Helical Tooth |
| Slew Drive Deceleration | Two-stage |
| Product Surface | Anti-rust Plastic Powder |
| Worm Feature | Double Enveloping Worm |
| Rotation Range | 360° Continuous Or As Requested |
| Feature | Long Life And Self Locking |
| Mounting Options | Horizontal, Vertical Or Custom |
| Protection | IP66, Enclosed |
| Grease Type | Mobil EP-2 |
| Slewing Drive Gear Ratio | Up To 150:1 |
The Solar Slew Drive is a high-precision gearbox that is designed for solar tracking systems. Our product technical support and services include:
Our team of technical experts is dedicated to providing our customers with the highest level of support and ensuring the best possible performance of their solar tracking systems.
