Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | Changzhou |
| Brand Name: | HT |
| Certification: | CE, ISO9001 |
| Model Number: | VE |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Plywood |
| Delivery Time: | 7～15 days |
| Payment Terms: | T/T |
| Maintenance: | Add Grease Regularly | Power Source: | Planetary Gearbox |
|---|---|---|---|
| Colour: | Orange, Gray Or As Requested | Brake: | Not Needed |
| Feature: | Long Life And Self Locking | Slew Drive Material: | QT700 |
| Slew Drive Deceleration: | Two-stage | Slewing Drive Gear Ratio: | Up To 150:1 |
| High Light: | Worm Gearbox Solar Panel Slewing Drive,Long Life Solar Panel Slewing Drive,Solar panel slewing gear box |
||
One of the key features of this slewing drive is its rotation range. It can rotate continuously up to 360°, allowing it to track the sun's movement from east to west and maximize the amount of sunlight captured by the solar panels. Moreover, it can be customized to rotate as requested, making it a versatile solution for solar tracking systems.
The Solar Panel Slewing Drive is available in multiple colors, including orange, gray, or as requested. This makes it easy to match with the overall design and color scheme of the solar panel system. It also comes with a planetary gearbox power source, which ensures high torque and efficient energy transmission.
Mounting options are another important aspect of this slewing drive. It can be mounted horizontally, vertically, or customized to meet specific requirements. This flexibility allows for easy installation and integration with existing solar tracking systems.
The Solar Panel Slewing Drive is a reliable and durable solution that comes with a limited warranty of 3~10 years. This provides customers with peace of mind and assurance that they are investing in a high-quality product that will last for years to come. It is also equipped with advanced features such as self-locking and anti-backlash, ensuring maximum accuracy and safety during operation.
Overall, the Solar Panel Slewing Drive is a worm gear slewing drive that is ideal for south to north moving slewing drive applications. Its advanced technology, high precision, and durability make it an excellent choice for solar tracking systems. Whether you are looking to maximize energy production or reduce maintenance costs, this slewing drive is the perfect solution for your solar panel system needs.
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |

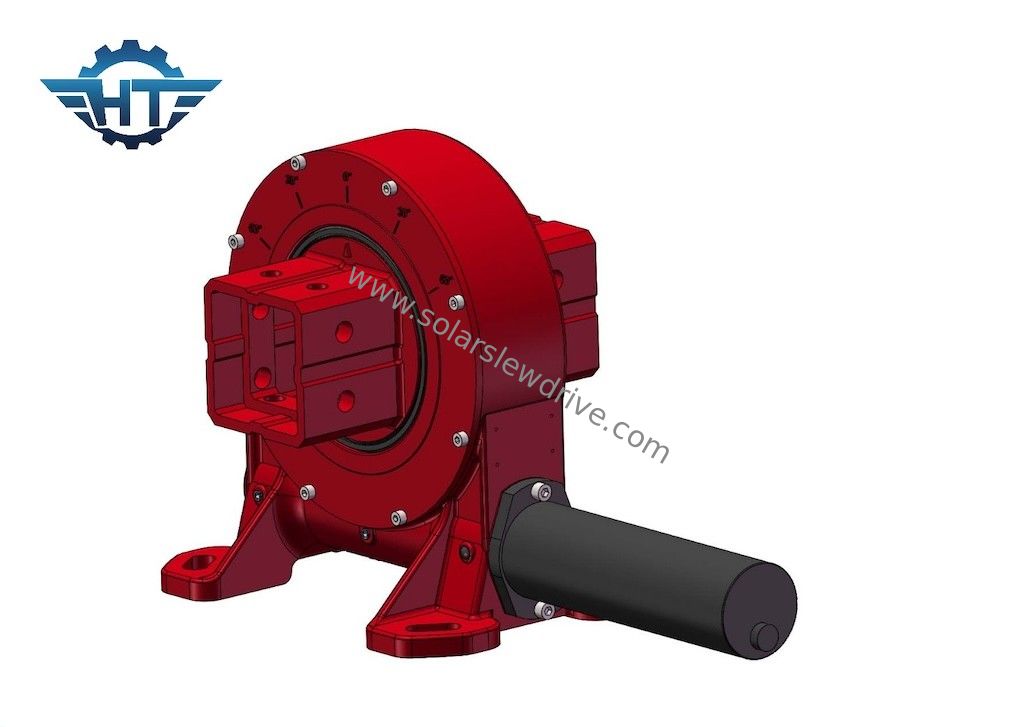

| Product Name | VE7 High Strength Solar Tracker Slewing Drive |
| Self-Locking | Yes |
| Grease Type | Mobil EP-2 |
| Slew Drive Deceleration | Two-stage |
| Feature | Long Life and Self Locking |
| Rotation Range | 360° Continuous or as requested |
| Type of Tooth | Helical Tooth |
| Colour | Orange, Gray or as requested |
| Slewing Drive Gear Ratio | Up to 150:1 |
| Structure | Worm and Gear |
| Installation Site | Solar Power Plant, Roof, Farm... |
The Solar Slew Drive is a vital component in solar panel tracking systems. It is designed to handle the heavy loads of solar panels while ensuring precise and smooth movement. The structure of this product is worm and gear, which provides self-locking and enhances its efficiency. The Solar Slew Drive is a durable solution with a 30-year field life, making it a reliable option for long-term solar panel installations.
The primary application of the Solar Slew Drive is azimuth and elevation tracking. The azimuth and elevation tracking slewing drive is ideal for solar panel installations that require accurate positioning and alignment. The Solar Slew Drive is designed to handle the harsh outdoor conditions, including extreme temperatures ranging from -40°C to +120°C. The drive requires regular maintenance, such as adding grease, to ensure its longevity and performance.
The Solar Slew Drive is suitable for a variety of solar panel applications, including residential, commercial, and industrial installations. It is also used in solar thermal power plants and solar trackers. HT Solar Slew Drive is a cost-effective solution that provides long life and self-locking capabilities, making it a reliable and efficient choice for solar panel tracking systems.
Our Solar Slew Drive product comes with top-notch technical support and services to ensure smooth operation and maximum efficiency. Our team of experienced engineers is available to answer any technical questions you may have and to provide guidance on installation, maintenance, and repair. In addition, we offer customized solutions to meet specific project requirements and provide on-site training to ensure proper use and maintenance of the product. Our commitment to quality and customer satisfaction is unmatched in the industry, making us a trusted partner for all your Solar Slew Drive needs.
