Providing Innovative and Cost-effective Slewing Drives
| Gear Type: | Slew Drive | Static Axial Load: | 200 KN |
|---|---|---|---|
| Drive Type: | Single Axis | Dynamic Axial Load: | 100 KN |
| Ratio: | 62:1 | Dynamic Radial Load: | 50 KN |
| Maximum Output Torque: | 10000 Nm | Self-Locking: | Yes |
| High Light: | vertical mounted slew drive for solar tracker,single axis slew drive for solar tracker,vertical mounted slew drive for solar tracker |
||
Featuring a worm slew drive design, this gearbox offers exceptional tracking precision, with an accuracy of 0.01°. This makes it ideal for use in solar trackers, where precision is essential for maximizing energy output.
In addition to its precision and load capacity, this gearbox also offers a maximum output torque of 10000 Nm. This makes it ideal for use in heavy-duty applications that require high levels of torque, such as solar tracking systems.
Overall, the Slew Drive Gearbox is an excellent choice for anyone looking for a high-quality gearbox for their solar tracking system. With its self-locking design, high load capacity, and precision tracking capabilities, it is sure to meet the needs of even the most demanding applications.
| Dynamic Radial Load | 50 kN |
| Self-Locking | Yes |
| Dynamic Axial Load | 100 kN |
| Static Axial Load | 200 kN |
| Protection Level | IP66 |
| Slewing Speed | 0.2 rpm |
| Tracking Precision | 0.01° |
| Maximum Output Torque | 10000 Nm |
| Ratio | 62:1 |
| Drive Type | Single Axis |

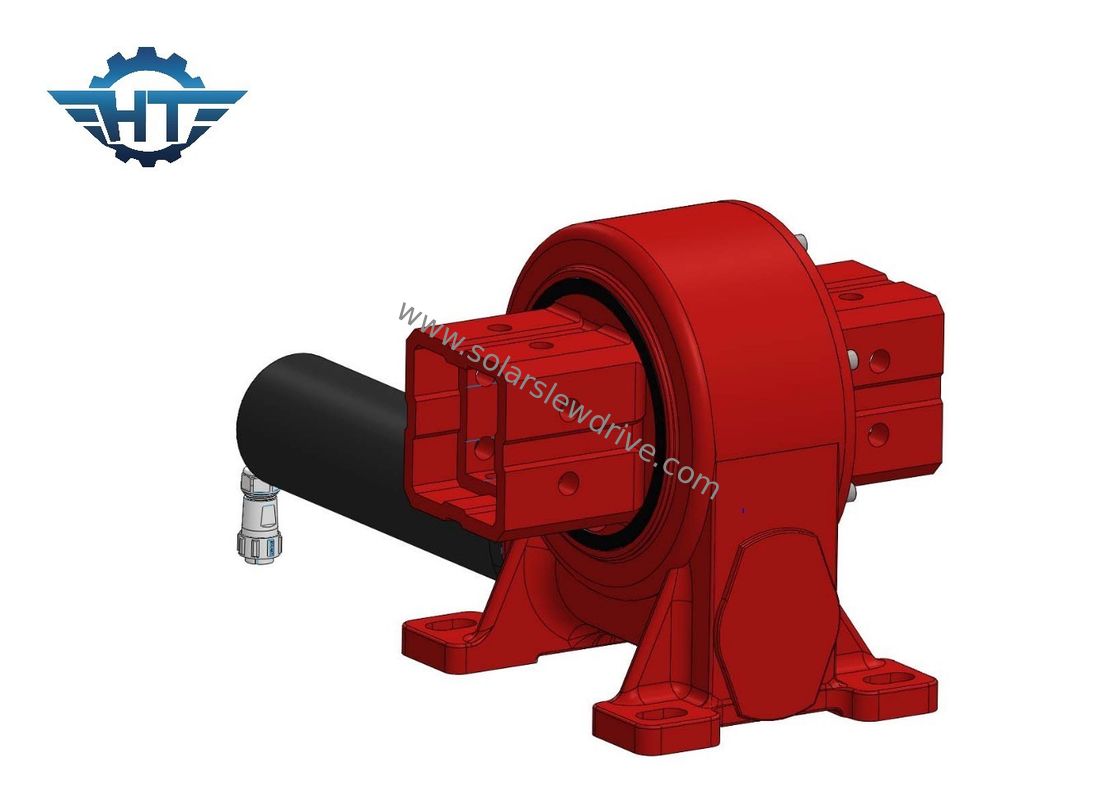

This worm drive slew ring is a type of slew drive for solar tracking system or slew drive for solar tracker.
One of the key features of the Slew Drive Gearbox is its static radial load capacity of 100 kN. This makes it particularly well-suited for applications where heavy loads need to be supported, such as in cranes, excavators, and other heavy machinery. Additionally, the gearbox has a static axial load capacity of 200 kN, which means it can handle significant pressure from different angles.
Another important feature of the Slew Drive Gearbox is its maximum output torque of 10,000 Nm. This makes it an excellent choice for applications that require a lot of power, such as in wind turbines or heavy-duty machinery. The gearbox is also designed to provide precise tracking, with a tracking precision of 0.01°. This makes it ideal for use in applications where accuracy is critical, such as in solar trackers.
The Slew Drive Gearbox is also highly durable and has a protection level of IP66. This means it is highly resistant to dust and moisture, making it suitable for use in harsh environments. The gearbox is typically used in conjunction with a worm drive slew ring, which provides additional support and stability.
Overall, the Slew Drive Gearbox is a highly versatile product that can be used in a wide range of applications. Its high load capacity, output torque, and tracking precision make it an ideal choice for heavy machinery, solar trackers, and wind turbines, among other applications.
The Slew Drive Gearbox product technical support and services include:
Product Packaging:
Shipping:
Q: What is the load capacity of the Slew Drive Gearbox?
A: The load capacity of our Slew Drive Gearbox ranges from 1 to 50 tons, depending on the model.
Q: How precise is the Slew Drive Gearbox?
A: Our Slew Drive Gearbox has a precision of up to 0.01 degrees, ensuring accurate positioning and smooth motion.
Q: What is the backlash of the Slew Drive Gearbox?
A: Our Slew Drive Gearbox has minimal backlash, typically less than 0.1 degrees, ensuring precise and reliable operation.
Q: What is the gear ratio of the Slew Drive Gearbox?
A: Our Slew Drive Gearbox has a wide range of gear ratios, from 3:1 to 200:1, allowing for customization to meet specific application requirements.
Q: What mounting options are available for the Slew Drive Gearbox?
A: Our Slew Drive Gearbox can be mounted using a flange, base plate, or custom mounting solution, depending on the application requirements.
