Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~380/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Application: | Solar Tracking System | Outside Diameter: | 3 To 25 Inches |
|---|---|---|---|
| Worm Gear Material: | 50Mn, 42CrMo | Power Supply: | 24VDC |
| Service: | OEM Design | Life Cycle: | 30 Years |
| Packing: | Plywood Case | Material: | Steel Or Aluminum |
| High Light: | VE9 slew drive gearbox,Hourglass Worm slew drive gearbox,24VDC slew gear box |
||

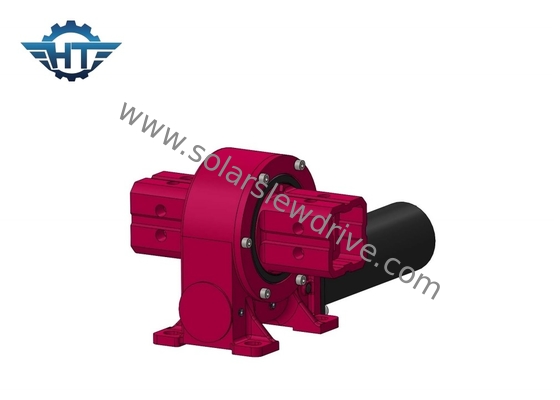

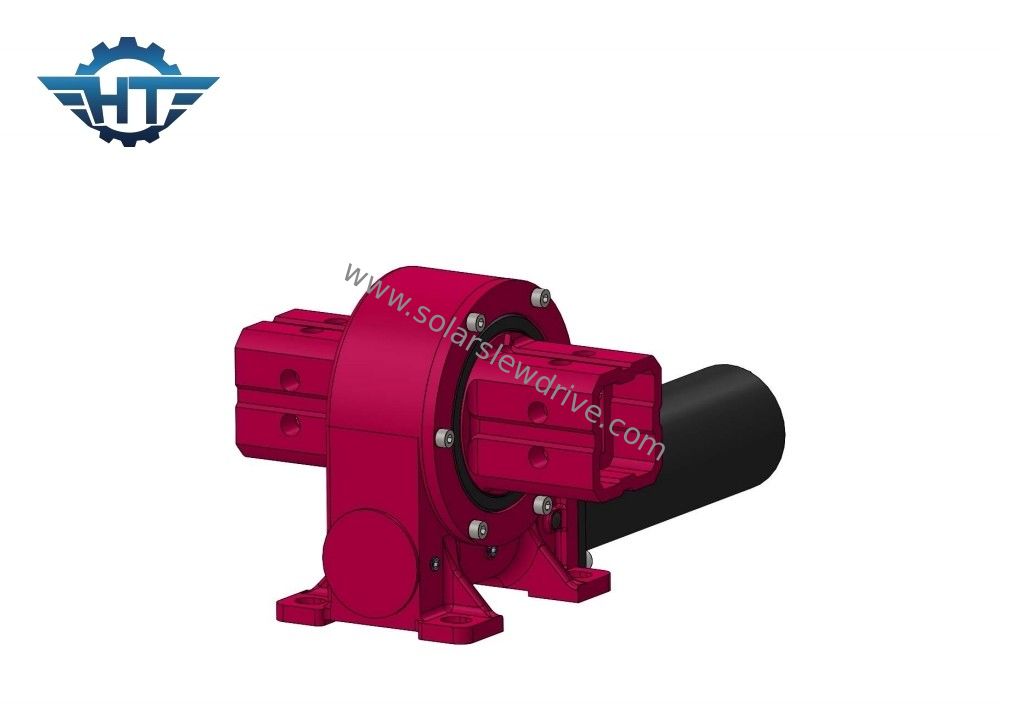

VE9 Slew Drive Gearbox With Hourglass Worm For Tube Output Solar Tracking System
Slew Drive Gearbox Description
The main components of slewing drive are: worm, gear, casting base and some standard parts such as bearings, bolts, etc. The slewing drive device uses axle motion to reduce force consumption and play a role in safety protection.
VE Type Slewing Drive Datasheet
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Application
Slewing drives are mainly used in special vehicle steering platforms, heavy-duty flatbed trucks, container cranes, truck-mounted cranes, truck cranes, aerial work vehicles, cranes, gantry cranes, small wind power stations, aerospace communications, satellite reception, solar tracking systems and many other industries. Especially in recent years, the rapid development of solar photovoltaic power generation industry is widely used. The rotary drive is used in the solar photovoltaic power generation industry, and is generally equipped with a rotary geared motor or an AC geared motor; on construction machinery, a hydraulic motor is mainly configured as a power drive.
