Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE7" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Resolution: | 0.01° | Encoder Type: | Incremental |
|---|---|---|---|
| Protection: | Enclosed Housing | Waterproof: | IP66 |
| Self-Locking: | Yes | Radial Load: | 58 KN |
| Radical Load: | 230 KN | Power Supply: | 24 Vdc |
| High Light: | High Performance Solar Tracker,PV Mounting System Solar Tracker,High Performance slew drive solar |
||

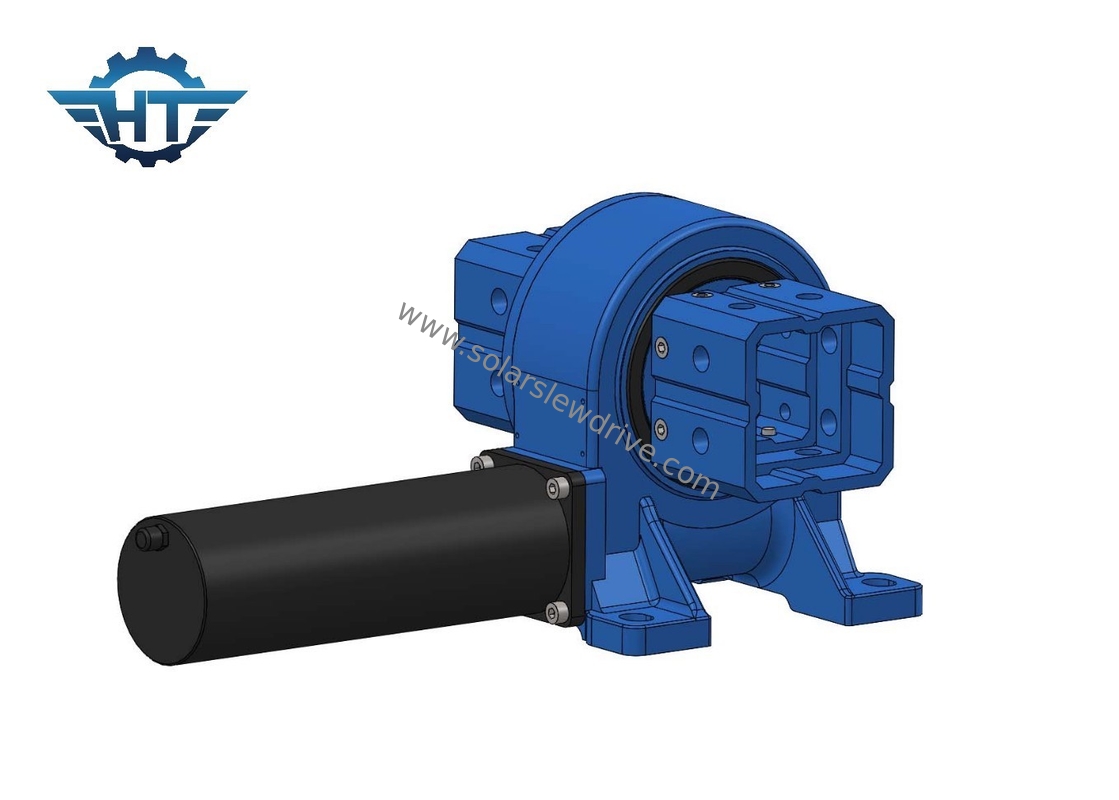

Solar Tracker Slew Drive For High-Performance PV Solar Mounting System
Solar Tracker Slew Drive Gearbox
Engineered with environmental sustainability in mind, our solar tracker slewing drive helps maximize the energy output of solar panels, contributing to the reduction of greenhouse gas emissions and reliance on fossil fuels. Backed by our commitment to customer satisfaction, our worm gear solar tracker slewing drive comes with comprehensive support and service. From initial consultation to installation and beyond, we are dedicated to ensuring the success of your solar tracking projects.
Technical Table of VE Slewing Drive
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Applications
Large-scale solar power plants utilize solar tracking slewing drives to orient solar panels or arrays for maximum sunlight exposure throughout the day. By tracking the sun's movement, these systems significantly increase energy output compared to fixed solar installations.
Portable solar generators, RV solar panels, and marine solar systems often incorporate solar tracker slewing drives to optimize energy capture while on the move. These solutions provide off-grid power for recreational vehicles, boats, and outdoor activities.
