Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9” |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Application: | Sun Tracking System | Color: | Requested |
|---|---|---|---|
| Motor Mounting: | Electric And Hydraulic Motor | Installation: | Horizontal/Vertical |
| Ratio: | 51:1 | Encoder: | Optional |
| Ambient Temperature: | -20℃~+80℃ | Weight: | 65 Kg |
| High Light: | Durable Solar Tracker Slew Drive,Compact Solar Tracker Slew Drive,slew drive solar For Sun Tracking |
||

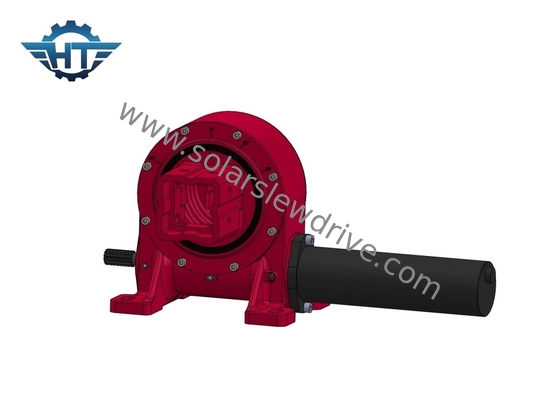

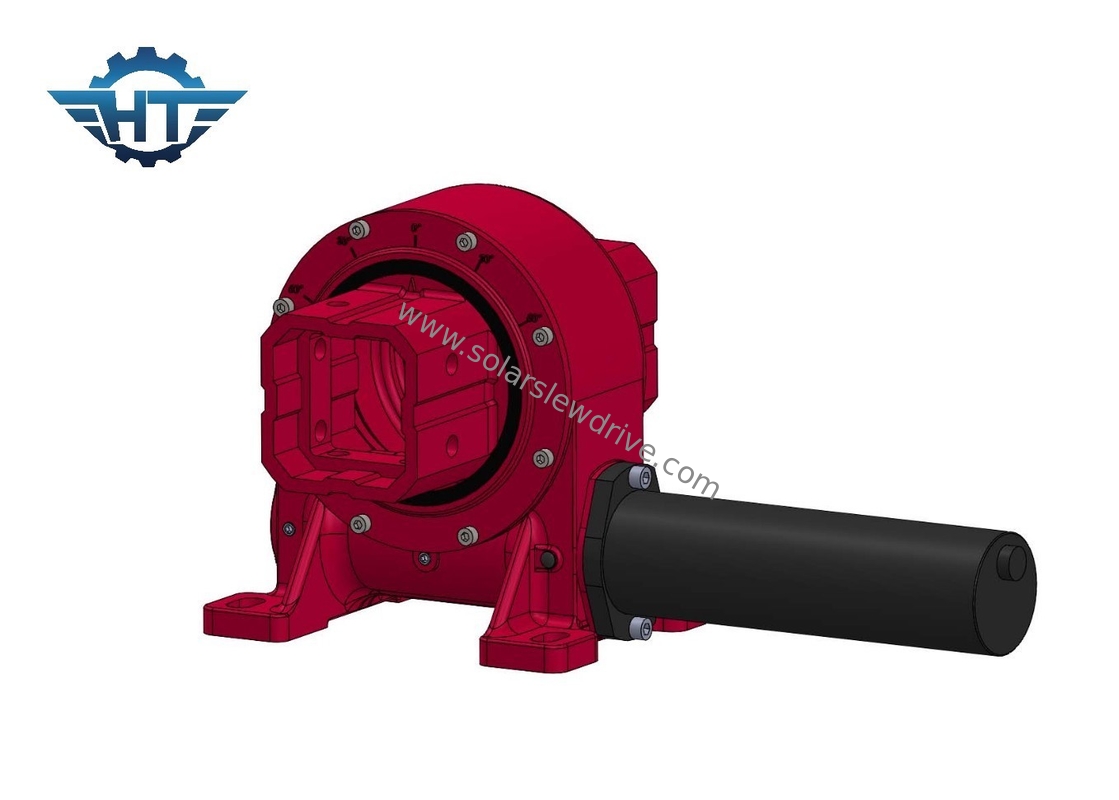

Compact And Durable Solar Tracker Slew Drive For Sun Tracking
Solar Tracker Slew Drive Description
Compact and Space-Saving: The compact design of our worm gear solar tracker slewing drive allows for easy integration into solar tracking systems without taking up excessive space. Its efficient use of space makes it suitable for both small-scale residential installations and large-scale commercial solar farms.
High Torque Transmission: With its high torque transmission capabilities, our worm gear solar tracker slewing drive delivers the power needed to smoothly rotate solar panels for precise sun tracking. This ensures consistent performance even under heavy loads, optimizing energy production throughout the day.
Performance Parameters of VE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Applications
solar tracker slewing drives play a critical role in maximizing the efficiency and effectiveness of solar energy systems across various applications, contributing to renewable energy adoption and sustainability efforts worldwide.
Commercial and Industrial Buildings: Commercial and industrial facilities often incorporate solar tracker slewing drives into rooftop or ground-mounted solar installations. These systems help businesses reduce energy costs and meet sustainability goals by optimizing solar panel efficiency.
Agricultural Applications: In agriculture, solar tracker slewing drives can be used to power solar-powered irrigation systems, crop monitoring equipment, or electric fences. By harnessing solar energy efficiently, farmers can improve productivity and reduce reliance on fossil fuels.
