Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE6" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~330/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Ratio: | 51:1 | Rotation Range: | ±65 Degrees |
|---|---|---|---|
| Slewing Drive Type: | Dual Axis Or Single Axis | Installation Site: | Open Field |
| Rotating Type: | Horizontally And Vertically | Usage: | Solar Trackers |
| Feature: | Long Life And Self Locking | Precision: | 0.15° |
| High Light: | High Load Capacity Slew Drive Gearbox,High Holding Torque slew drive gearbox,slew drive gearbox For Solar Tracker |
||

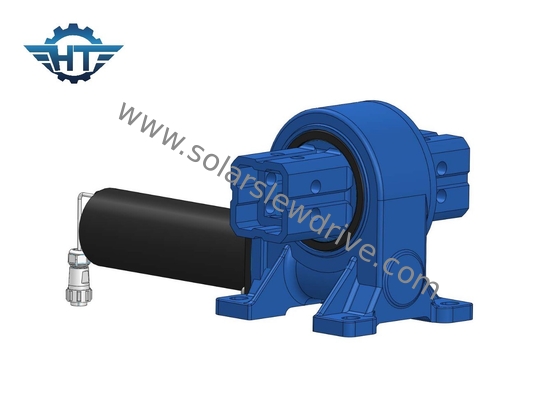

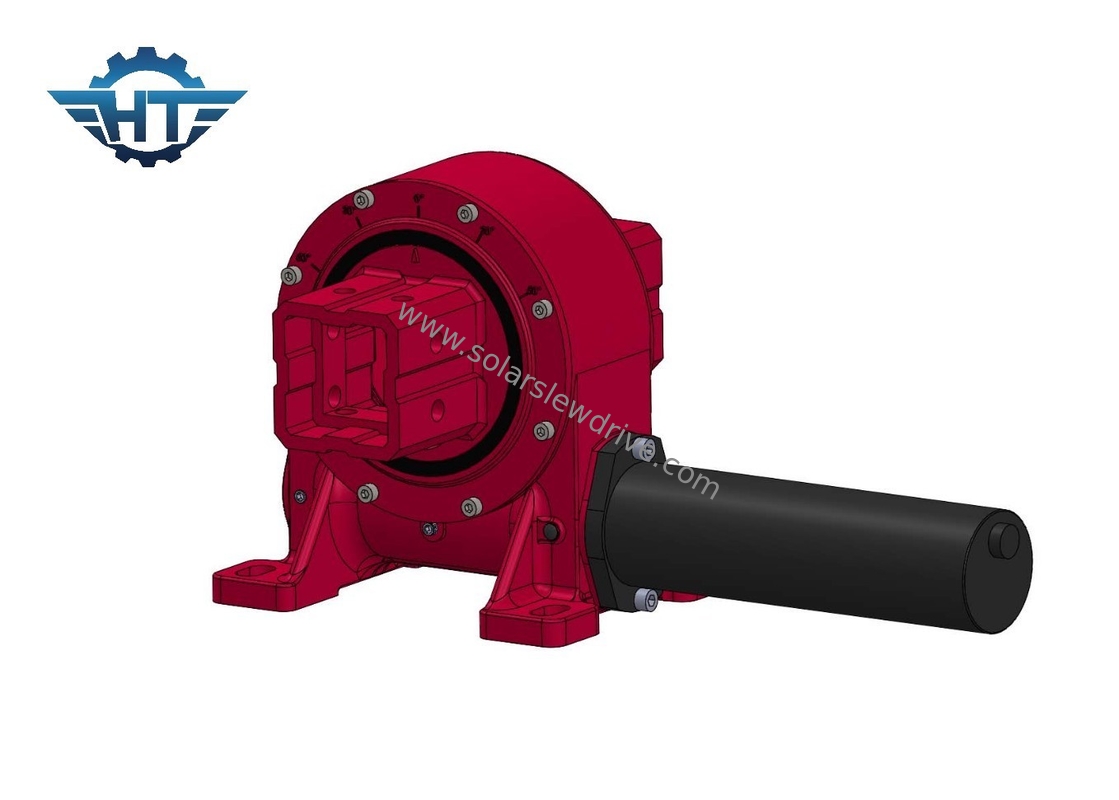

High Holding Torque Slew Drive Gearbox For Solar Tracker With High Load Capacity
Slew Drive Gearbox Description
Hangtuo's slewing drives provide efficient solar tracking solution. Our worm gear solar tracker slewing drive offers a reliable and efficient solution for aligning solar panels with the sun's position throughout the day. Its precise gearing mechanism ensures smooth and accurate movement, optimizing energy capture and maximizing solar panel efficiency.
Parameters of VE Series Slewing Drive
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Shipping
The packaging and shipping of solar tracking slewing drive gearboxes can be effectively managed to ensure their safe and timely delivery to customers worldwide. For international shipments, proper documentation and compliance with customs regulations are essential. Export/import licenses and any required certificates are obtained to facilitate smooth customs clearance.
Tracking and Monitoring: to monitor the shipment's progress in real-time, we will send you tracking numbers to ensure transparency and enabling timely intervention in case of any unforeseen issues during transit.
Insurance: Depending on the value of the cargo, insurance coverage may be obtained to protect against loss or damage during shipping.
Customer Support: Throughout the shipping process, customer support is available to address any inquiries or concerns, providing updates on the shipment's status and ensuring a smooth delivery experience.
Applications
Solar tracker slewing drives find applications in various sectors where precise solar panel orientation is crucial for optimizing energy production.
Solar Power Plants: Large-scale solar power plants utilize solar tracker slewing drives to orient solar panels or arrays for maximum sunlight exposure throughout the day. By tracking the sun's movement, these systems significantly increase energy output compared to fixed solar installations.
Residential Solar Installations: In residential settings, solar tracker slewing drives can be integrated into solar panel mounting systems to automatically adjust the panels' tilt and orientation throughout the day. This maximizes energy production and improves the return on investment for homeowners.
