Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | CHINA |
| Brand Name: | HANGTUO |
| Certification: | CE, ISO9001 |
| Model Number: | VE5 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 145~226 USD/PC |
| Packaging Details: | PLYWOOD BOX |
| Delivery Time: | 15~30 DAYS |
| Supply Ability: | 12000 PCS/YEAR |
| Type: | Slewing Drive | Size: | 3 Inches - 25 Inches |
|---|---|---|---|
| Feature: | Long Life | Power Supply: | 24 Vdc |
| Noise Level: | ≤65dB | Voltage: | 24V DC |
| Ip Grade: | IP66 | Technical Support: | Whole Life |
| High Light: | Solar Tracker Small Slew Drive,Reverse Self-Locking Small Slew Drive,Planetary Gearbox Small Slew Drive |
||

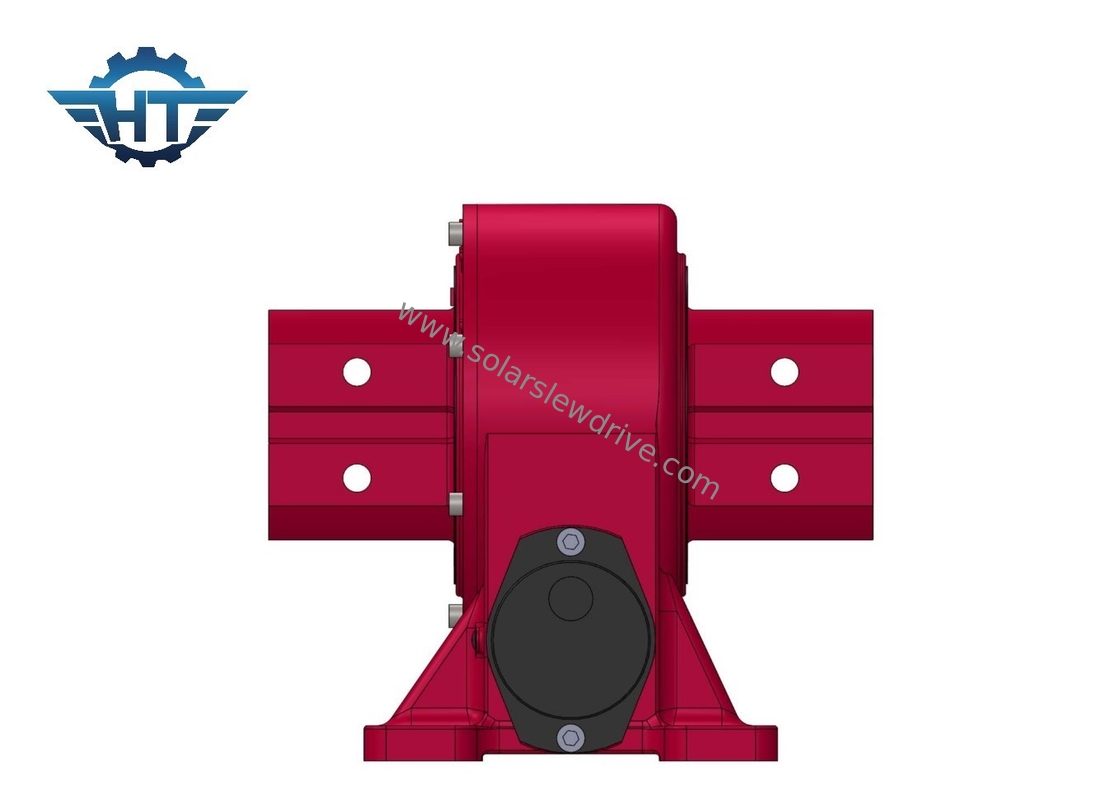

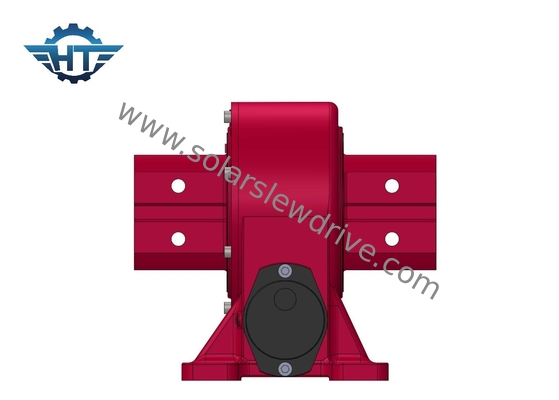

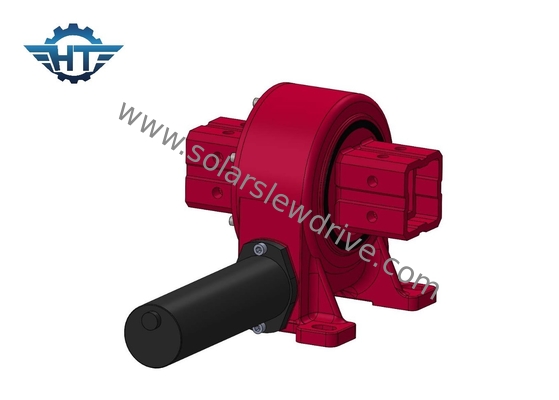

Small Slew Drive For Solar Tracker With Planetary Gearbox And Reverse Self-Locking
Small Slew Drive Description
Our innovative small worm gear solar tracking slewing drive system, engineered to rotate solar panels with exceptional precision, offering seamless alignment with the sun's position for enhanced energy yield and system performance.
Our small vertical single axis featured with high-performance, utilizing worm gear technology tailored specifically for solar tracking systems, delivering quiet operation, high torque transmission, and long-term reliability to maintain optimal solar panel positioning.
Vertical Slew Drive Performance Parameters
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
Packaging and Shipping
Our slewing drives are using high-quality packaging materials such as ply wooden boxes, sturdy cardboard boxes, or custom-designed containers to protect the slewing drive gearbox during transportation. There is clear and accurate labeling made of metal indicating the product model, traceable serial number and any special care requirements are affixed to the packaging to ensure proper handling throughout the shipping process.
The user manual will be send by mail if required.
