Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Application: | Solar Tracking System | Coating Class: | C5 |
|---|---|---|---|
| Gear Ratio: | Up To 500:1 | Grease Injection: | Internal 5 Years |
| Safty Class: | IP66 | Service: | OEM |
| Slewing Drive Type: | Dual Axis Or Single Axis | Structure: | Worm And Gear |
| High Light: | ip66 enclosed slewing drive,worm gear enclosed slewing drive,anti corrosion solar tracker slew drive |
||

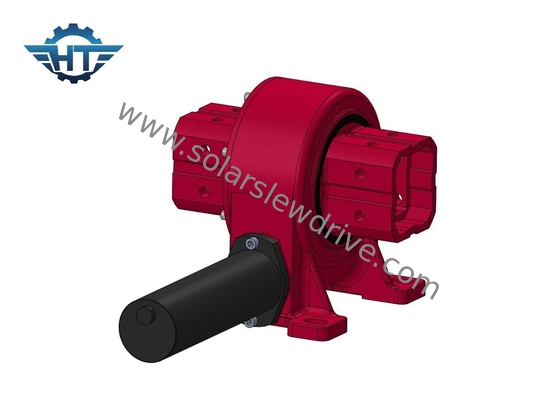

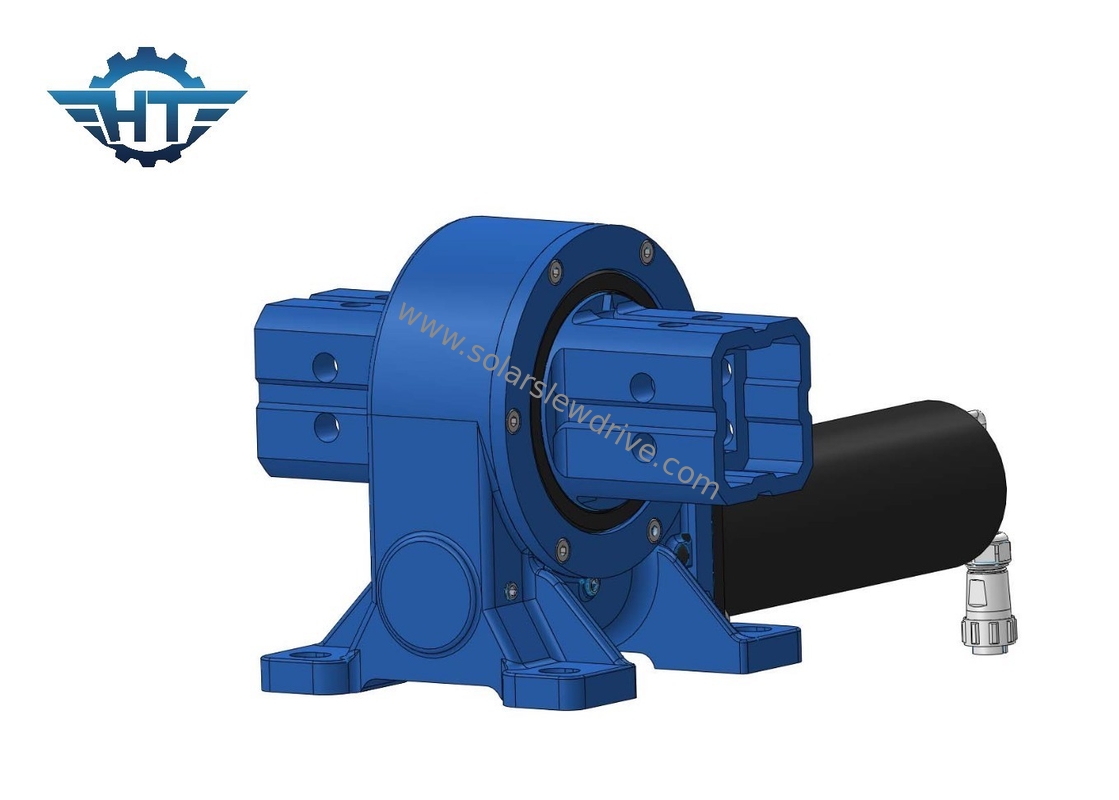

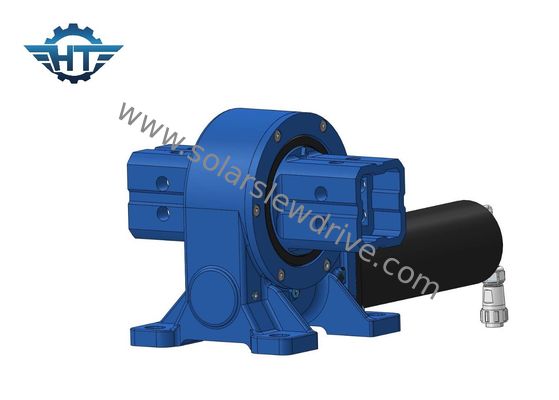

IP66 Worm Gear Anti-Corrosion Enclosed Slewing Drive For Outdoor Used Solar Tracking System
Worm Gear Enclosed Slewing Drive Description
Maintenance and Lubrication
Regular maintenance and proper lubrication are essential for ensuring the longevity and performance of worm gear slewing drives. Lubrication helps reduce friction and wear in the gear mechanism.
Multiple Stages
Our slewing drives come with multiple stages of gearing, allowing for even higher reduction ratios and torque outputs. This makes them suitable for applications that require extremely slow and powerful rotation.
Corrosion Resistance
In applications where exposure to the elements is a concern, such as in outdoor solar tracking systems or maritime environments, we provide corrosion-resistant coatings or materials to enhance the longevity of the slewing drive.
VE Model Slewing Drive Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
Features
Position Feedback:
To enhance precision and control, many slewing drives are equipped with position feedback systems, such as encoders, to provide accurate information about the current position of the load.
Emergency Stop and Safety
Slewing drives may include features like emergency stop mechanisms and safety clutches to ensure the safety of equipment and operators in case of malfunctions or unexpected events.
For Heavy-Duty applications
Due to robust design and ability to handle heavy loads, slewing drives are used in various heavy-duty applications, including ship cranes, mining equipment, and large-scale industrial machinery.
Electromechanical Actuation
Our slewing drives can incorporate electromechanical actuators or drive systems, allowing for more precise control and integration with automated systems.
Customization
We offer customization options to meet specific application requirements including variations in size, gear ratios, mounting options, and special coatings to suit environmental conditions.
Applications
Energy
The high efficiency of worm gear mechanisms contributes to the overall energy efficiency of systems using slewing drives, making them suitable for applications where energy conservation is a priority.
Automation and Robotics:
In industrial automation and robotics, slewing drives play a crucial role in robotic arms, positioners, and other systems where controlled and precise rotation is necessary.
