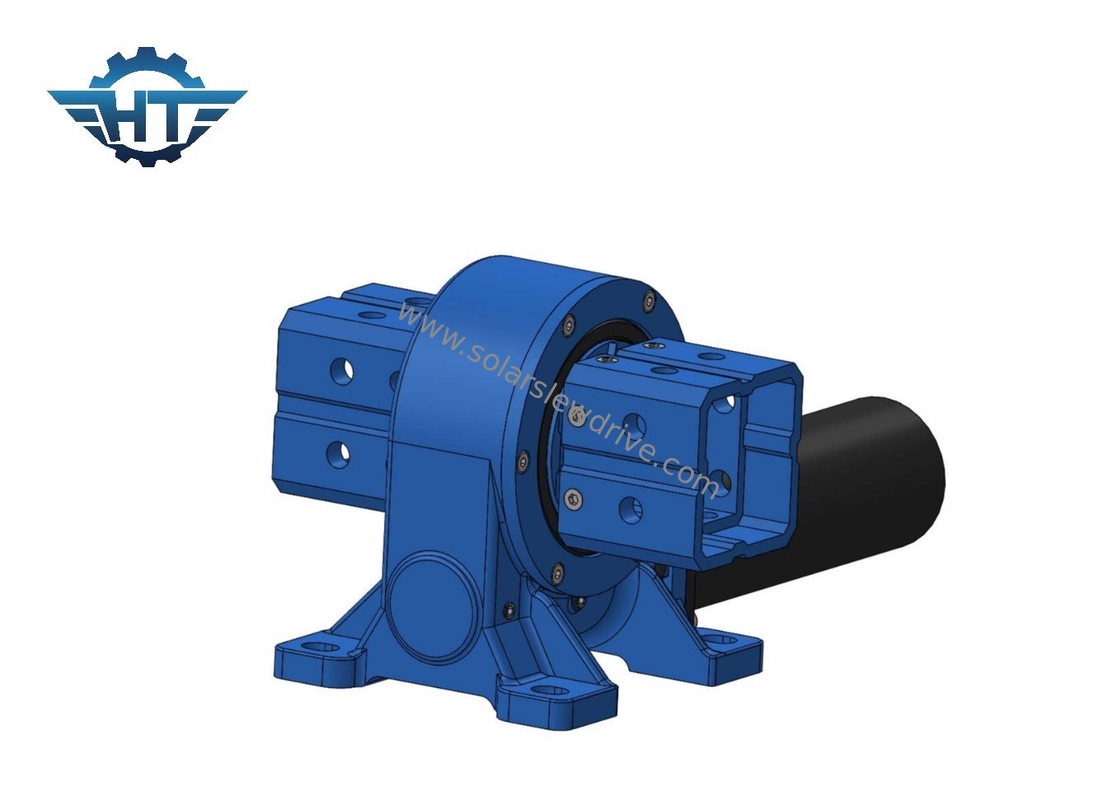

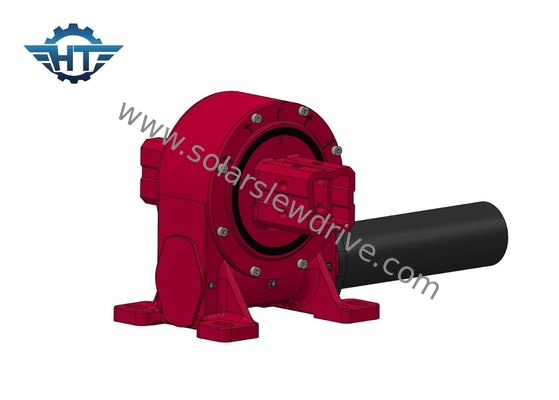

High Efficiency Worm Gear Slewing Drive Self Locking For Solar Renewable Energy

High Efficiency Worm Gear Slewing Drive Self Locking For Solar Renewable Energy

  • High Efficiency Worm Gear Slewing Drive Self Locking For Solar Renewable Energy
  • High Efficiency Worm Gear Slewing Drive Self Locking For Solar Renewable Energy
High Efficiency Worm Gear Slewing Drive Self Locking For Solar Renewable Energy
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9”
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Application: Solar Power System Axis: Single Axis
Encoder Type: Incremental Feature: Worm And Wormwheel
Input Voltage: 24V Installation Site: Roof And Field
Packing: Standard Export Packing Work Time: 24 Hours
High Light:

high efficiency worm gear slewing drive


self locking worm gear slewing drive


enclosed slew drive for solar tracker

High Efficiency Worm Gear Slew Drives With Self-Locking Feature For Solar Renewable Energy


Corrosion Resistance Slew Drive Description


Worm gear self locking slewing drives are typically constructed with materials that offer corrosion resistance, making them suitable for outdoor applications. The housing is designed to protect internal components from environmental factors, ensuring longevity and durability. This durability is crucial for the reliable operation of solar tracking systems in various weather conditions.


A worm gear solar tracking slewing drive combines the precision of worm gear mechanisms with the advantages of dual-axis tracking, compact design, durability, and maintenance-free operation. These features make it a key component in solar tracking systems, contributing to increased energy efficiency and sustainability in solar power generation.

Performance Parameters of VE Series


Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251




Dual-Axis Rotation:

Slewing drives allow for dual-axis rotation, enabling movement in both horizontal and vertical directions simultaneously.

High Torque Density:

These gearboxes are designed to provide high torque output in a compact and lightweight form, making them suitable for applications where space is limited.

Self-Locking Mechanism:

Slewing drives often have a self-locking mechanism that prevents the load from back-driving the gearbox, ensuring stability and safety in stationary positions.




Solar Tracking Systems:

Slewing drives are widely used in solar tracking systems to rotate solar panels, ensuring optimal exposure to sunlight throughout the day.

Wind Turbine Pitch and Yaw Systems:

They are employed in wind turbines to control the pitch and yaw mechanisms, enabling the adjustment of blade angles and the orientation of the entire turbine.
