Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE6" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Angle: | ±60° | Application: | Solar Tracking System |
|---|---|---|---|
| Coating Class: | C5 | Feature: | Totally Enclosed |
| Field Life: | 25~30 Years | Inspect Report: | Yes |
| Maintenance: | Free | Oem Service: | Available |
| High Light: | 6'' solar tracker slew drive,slewing drive for solar tracking system,outdoor solar tracker slew drive |
||

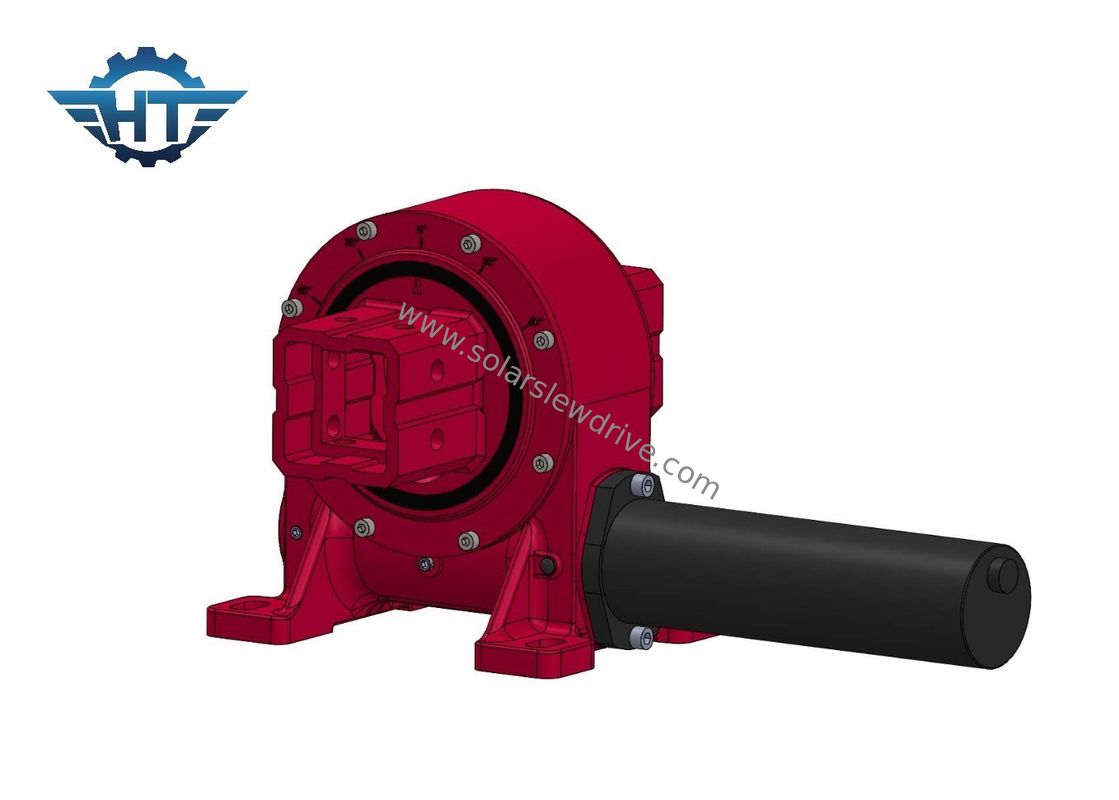

6'' Slew Drive Gearbox with 12x12 Main Torque for Solar Tracking System
Adaptable Solar Tracking Drive Description
Adaptable Solar Tracking Drive for Various Panel Configurations: The versatility of the solar tracker slewing drive makes it adaptable to different solar panel configurations and array layouts. Whether used in single-axis or dual-axis tracking systems, its modular design allows for seamless integration into various solar energy projects. This adaptability makes it a preferred choice for solar installations with diverse tracking requirements and design specifications.
Parameters of VE Series Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. Hard stop inside in case the mulfunctioning of the software control system
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
Applications
Utility-Scale Solar Power Plants: Solar tracker slewing drives play a vital role in utility-scale solar power plants, where large arrays of solar panels need to efficiently track the sun's movement. These drives enable precise and continuous adjustment of solar panels, optimizing energy capture and enhancing the overall efficiency of the solar power plant. The ability to follow the sun's path maximizes electricity generation, making these slewing drives crucial for large-scale renewable energy projects.
