Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE7" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | VE7" | Holding Torque: | 40,000 Nm |
|---|---|---|---|
| Tilting Torque: | 5,000 Nm | Function: | Increase Torque |
| Protect: | Enclosed | Protect Feature: | IP66 |
| Type: | Enclosed | Worm Gear: | Double Enveloping |
| High Light: | ce solar tracker slew drive,vertical solar tracker slew drive,envelope slew drive for solar tracker |
||

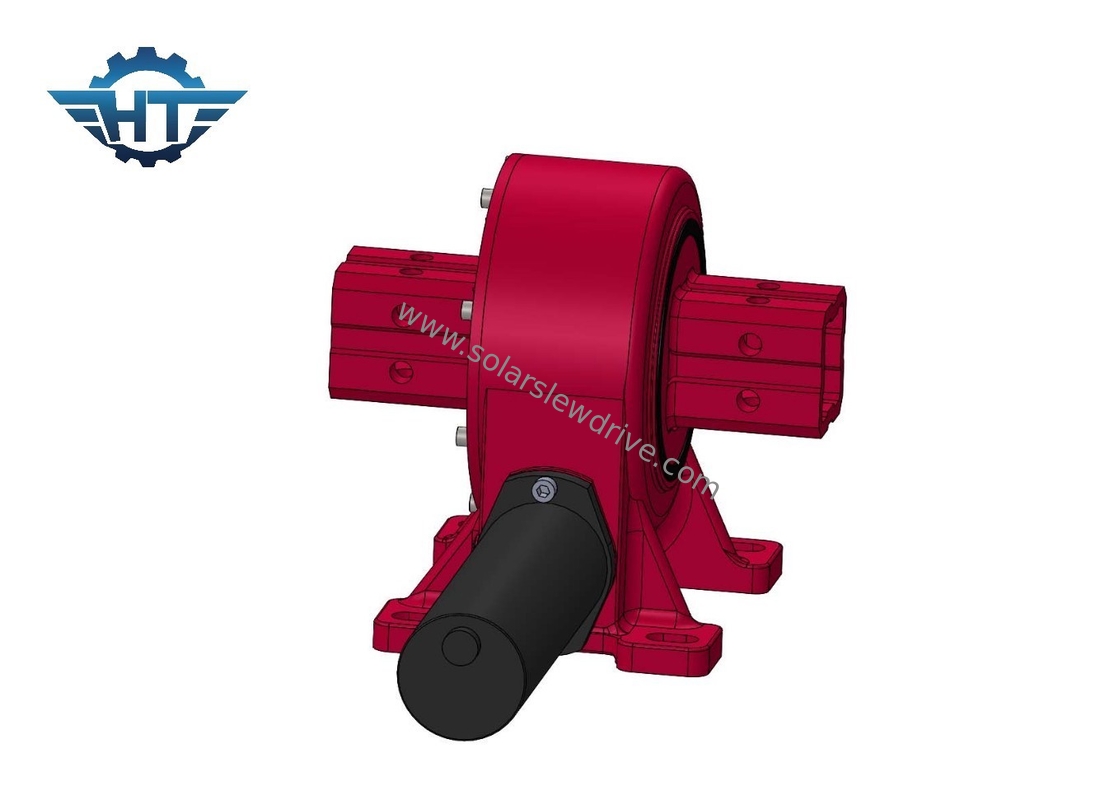

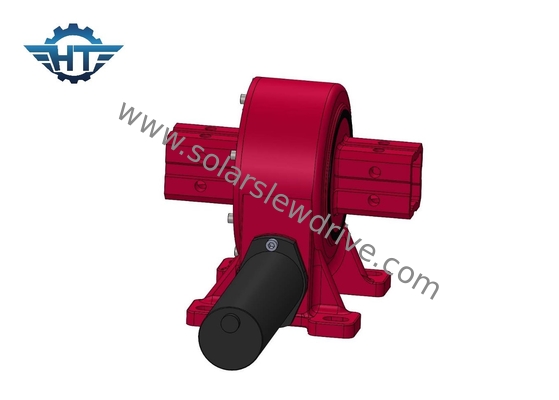

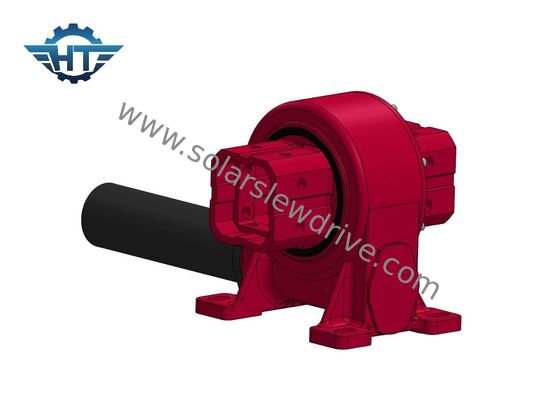

CE Vertical Envelope Slew Drive Worm Gearbox For Flexible Solar Tracking System
High-Precision Solar Tracker Slewing Drive
The solar tracker slewing drive is a crucial component in high-precision solar tracking systems. This drive mechanism allows solar panels to dynamically follow the sun's path throughout the day, optimizing energy capture. Its design incorporates precision gears and motors, ensuring accurate and smooth movement for maximum solar energy harvesting efficiency.
Technical Data of VE Slewing Drive
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
Applications
Residential Solar Energy Systems: Homeowners increasingly incorporate solar tracker slewing drives in residential solar energy systems to optimize energy generation. These drives allow for automated sun tracking, ensuring that rooftop solar panels capture the maximum amount of sunlight throughout the day. This application is particularly valuable for homeowners seeking to reduce their reliance on traditional power sources and embrace sustainable energy solutions.
