Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 248~380/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | VE9 | Warranty: | 5~10 Years |
|---|---|---|---|
| Application: | Solar Tracking System | Surface Coating: | C4/C5 |
| Output Voltage: | 24V | Rated Current: | 7.5 A |
| Rated Speed: | 0.1-1.5rpm | Weight: | 55 Kg |
| High Light: | ve9 single axis slewing drive,high precision single axis slewing drive,single axis solar tracker slew drive |
||

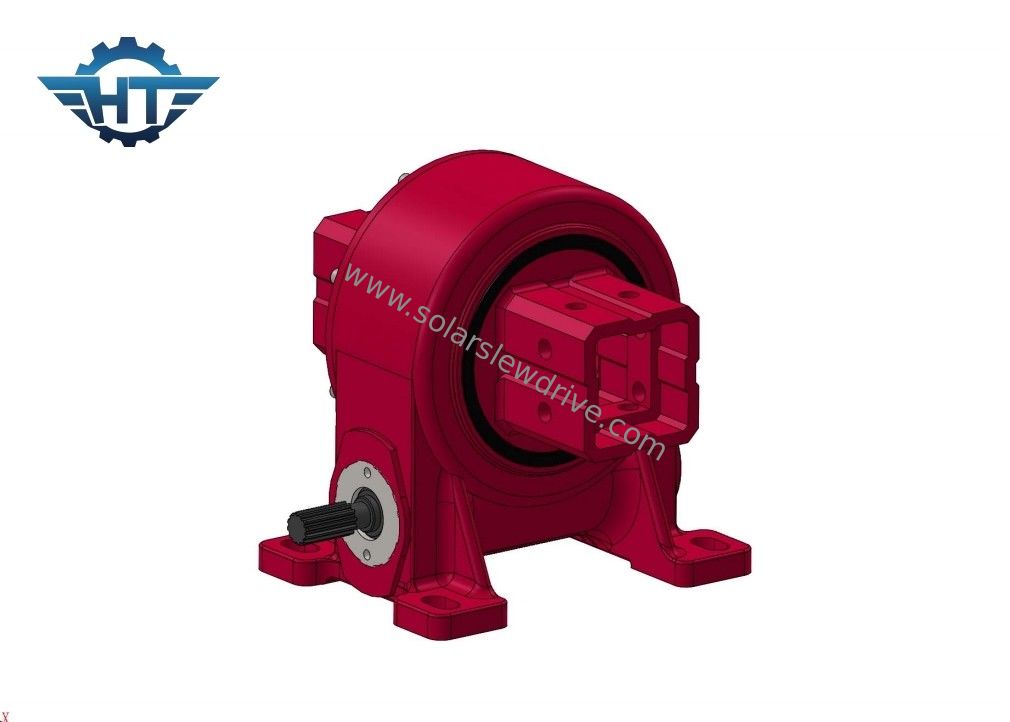

VE9 Single Axis Slewing Drive With 0.1° Precision For Solar Tracking System
Single Axis Slewing Drive Product Description
One of the key advantages of slewing drives is their ability to support both axial and radial loads simultaneously. This makes them suitable for applications requiring rotational movement while carrying substantial weight. The gear ratio of the slewing drive can be customized to meet specific torque and speed requirements, allowing for precise control over the rotational motion.
Performace of VE Series Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Applications
Amusement Rides: Slewing drives play a role in various amusement park rides, such as Ferris wheels, observation wheels, and rotating platforms. They provide the necessary rotational movement, ensuring a smooth and enjoyable experience for riders.
Mobile Equipment: Slewing drives are employed in mobile equipment, including truck-mounted cranes, mobile drill rigs, and concrete pumps. They enable the rotation and movement of the equipment, allowing for efficient and versatile operation in different work environments.
Agricultural Machinery: Slewing drives are utilized in agricultural machinery and equipment, such as irrigation systems, harvesters, and sprayers. They enable the rotation and positioning of components, facilitating efficient and precise agricultural operations.
Robotics and Automation in Manufacturing: Slewing drives are integral to robotics and automation in manufacturing processes. They are used in robotic arms, assembly lines, and material handling systems, enabling precise and controlled movement of components and products.
