Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE6" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1100 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Type: | Slewing Drive Gearbox | Material: | 42CrMo Or 50Mn |
|---|---|---|---|
| Warranty: | 5~10 Years | Size: | 3 Inch To 25 Inch |
| Type Of Tooth: | Multi-tooth Contact | Applications: | CSP And CPV Solar Power Stations |
| Color: | Customer Required | Motor: | 24V |
| High Light: | Single Axis Enveloping Worm Slew Drive,50Mn Enveloping Worm Slew Drive,3 inch Enveloping Worm Slew Drive |
||

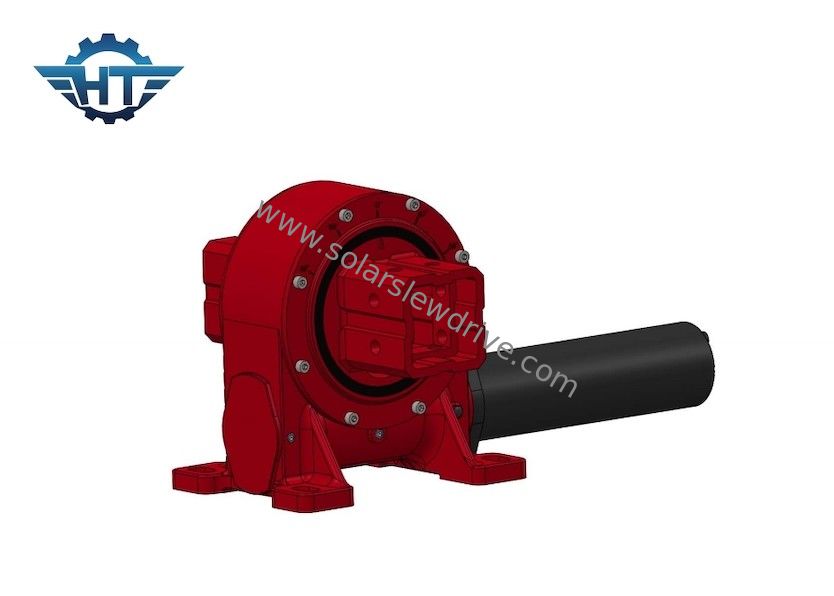

Single Axis Enveloping Worm Slew Drive For CSP And CPV Solar Power Stations
Slewing Drive Description
Slewing drives are comprised of worm, gear, housing, and motor (electric or hydraulic) and it is designed for axial, radial, and moment loading. We developed high backlash worm gear slew drives specially for applications where high accuracy is needed.
VE Slewing Drive Technical Data
| Model | Rated Output Torque (N.m) | Holding Torque (N.m) | TiltingTorque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Precision (degree) | Precision | IP | Working Tep(℃) | Self-locking | Weight (kg) |
| 3" | 600 | 1800 | 1500 | 22 | 15 | 31:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 12kg |
| 5" | 800 | 9200 | 5000 | 16 | 27 | 37:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 18kg |
| 7" | 1750 | 13200 | 7000 | 34 | 58 | 57:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 32kg |
| 8" | 2250 | 20400 | 11200 | 50 | 80 | 51:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 28kg |
| 9" | 4300 | 30800 | 16000 | 60 | 130 | 61:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 52kg |
| 12" | 5600 | 40560 | 25000 | 77 | 190 | 78:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 65kg |
| 14" | 6750 | 44200 | 48000 | 110 | 230 | 85:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 88 kg |
| 17" | 9460 | 53040 | 67000 | 142 | 390 | 102:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 135 kg |
| 21" | 16000 | 65000 | 89000 | 337 | 640 | 125:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 192 kg |
| 25" | 21450 | 89000 | 112000 | 476 | 950 | 150:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 251 kg |
Slewing Drive Features
1. Powered with hourglass (Double Enveloping) worm technology for increased load, efficiency and accuracy.
2. Manufacture a wide variety of drive styles, model sizes, performance ranges, sealing options, and mounting characteristics.
3. Standard model sizes from 75mm to 800mm in diameter.
4. Backlash, almost zero backlash
5. Self-locking
Other Options
1. Gear reduction ratio 31:1 to 150:1
2. Horizontal, vertical, or combination of multiple axis mounting
3. Single worm or double worm
4. Electric or Hydraulic motor option
5. Housing: Open or Closed
6. Customized input configurations
7. Custom designs per application requirements
