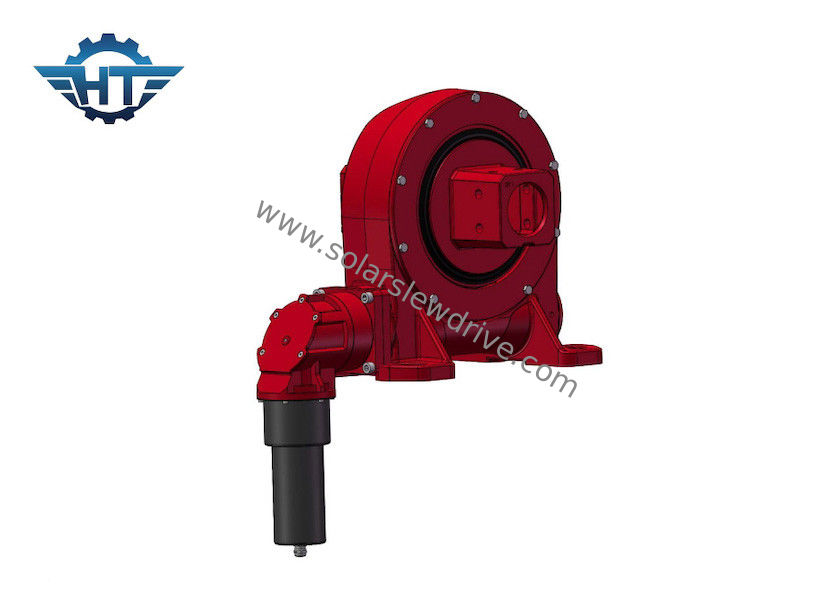

Cycle Small Solar Worm Gear Slew Drive 25 Inches 42CrMo For Power System

Cycle Small Solar Worm Gear Slew Drive 25 Inches 42CrMo For Power System

  • Cycle Small Solar Worm Gear Slew Drive 25 Inches 42CrMo For Power System
  • Cycle Small Solar Worm Gear Slew Drive 25 Inches 42CrMo For Power System
Cycle Small Solar Worm Gear Slew Drive 25 Inches 42CrMo For Power System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9”
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: 1 Inch To 25 Inches
Gear Ratio: 31:1~150:1 Efficiency: 40%
Precision: ≤ 0.1 Driver: Electric Motor
Color: Requested Application: Solar Power System
High Light:

Cycle Solar Worm Gear Slew Drive

,

25 inches Worm Gear Slew Drive

,

42CrMo Worm Gear Slew Drive

Long Life Cycle Small Size Worm Gear Slew Drive For Solar Power System



Worm Gear Slew Drive Description



Our worm gear slewing drive has a unique advantage in tracking toward sun. It enables your solar tracking system to follow the sun all the time from sunrise to sunset. They can be also applied in combination of horizontally and vertically mounted PV tracking system. They have small backlash and medium torque. They are a perfect choice for small applications.


Performance Parameters of VE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Advantages



Slewing drive is widely applied in modular trailers, all types of cranes, aerial working platform, solar tracking systems and wind power systems. Electric and planetary gearboxes can be designed according to customer's requirment. Slewing drive has the advantage for saving space in facilities, max load capacity in a compact design, extensive lifespan, reduced maintenance costs.



1.  24 hours online technical support

2.  OEM available

3.  Free custermized logo
