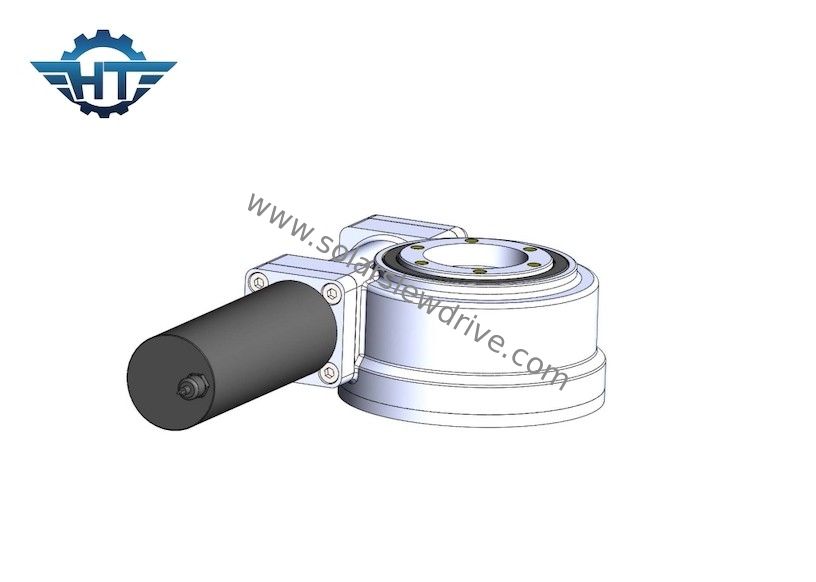

SE7 Worm Gear Slewing Drive Multi Tooth Contact 24VDC For Solar Tracking System

SE7 Worm Gear Slewing Drive Multi Tooth Contact 24VDC For Solar Tracking System

  • SE7 Worm Gear Slewing Drive Multi Tooth Contact 24VDC For Solar Tracking System
  • SE7 Worm Gear Slewing Drive Multi Tooth Contact 24VDC For Solar Tracking System
SE7 Worm Gear Slewing Drive Multi Tooth Contact 24VDC For Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 7" Slewing Drive Gear Ratio: 57:1
Slewing Motor: 24VDC Worm Gear: Double Enveloping
Application: Solar Tracking System OEM Service: Yes
Place Of Origin: Changzhou, China Size: Small Size
High Light:

SE7 Worm Gear Slewing Drive

,

Multi Tooth Worm Gear Slewing Drive

,

24VDC Worm Gear Slewing Drive

SE7 Worm Gear Slewing Drive Multi-Tooth Contact For Solar Tracking System


Worm Gear Slewing Drive Description


Our slewing drives are powered with hourglass worm technology for maximum torque and the smoothest rotation application. Typical slewing drive applications include solar tracking system, solar heating stations, satellite/antenna trackers etc.. The slewing drives are used in many other applications requiring load holding and rotational capability. We offer different slewing drives' models with different moment load capacities. The standard slewing drives are fitted with a housing and single self-locking hourglass worm shaft. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device.

Parameters of SE Series



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load(kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Packaging and Shipping



Inner Packaging: anti-rust plastic film ; vacuum plastic bags.

Outer Packaging: hard carton; wooden case ; wood pallet.

Shipping Term: by express; by air; by land; by sea.



For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.



If in bulk order in the future, we recommend ship by sea.



Note:



Express: door to door, just need to pay the import tax if required by the custom.

By air or by sea: factory to destination airport/sea port, need pay destination fee charged by the airport(the destination fee is always charged by per B/L regardless of the package is big, small, heavy or light, in gerneral 200~400 USD per cargo) and import tax if required by the custom.

By train: sometimes the shipping price is the same as sea but taking less shipping time than sea, we will take this shipping way into consideration if the goods are in urgent need by our clients.
