Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE7 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1100/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Type: | SE7 Slewing Drive | Warranty: | 5 Years |
|---|---|---|---|
| Material: | 42CrMo Or 50Mn | Size: | 3 Inch To 25 Inch |
| Application: | PV Tracking System | Color: | Customer Required |
| Motor: | AC Or DC Or Hydraulic | Life Time: | 30 Years |
| High Light: | Multi Tooth Solar Slew Drive,SE7 Slew Drive With Enclosed Housing,PV Tracking Solar Slew Drive |
||

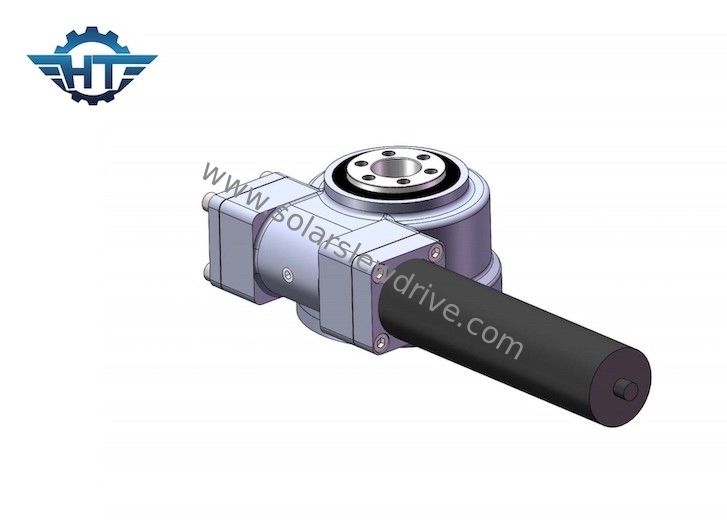

SE7 Slew Drive With Enclosed Housing Multi Tooth Contact Worm Gear For PV Tracking System
SE7 Slew Drive Description
Changzhou Hangtuo is a high-quality supplier of slewing drives in the industry. Its products are widely used in solar tracking systems, aerial work vehicles, construction machinery vehicles, garden machinery, cranes and shipbuilding, construction machinery, playgrounds, automatic parking lots, mining and Tunnel drilling machines, transportation and conveying devices, communication radar vehicles and satellite ground receivers, etc.
Changzhou Hangtuo is committed to continuously providing high-quality services and products to our valued customers, in order to meet or exceed customer expectations.
Technical Data of SE Slew Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Q&A
1. How can i choose?
Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the suitable gear motors
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity? 10 sets after samples confirmed
6. What's your delivery time?
For standard samples: within 7days; for batch orders: within 25days.
