Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE9 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 400~450 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | 9 Inch |
|---|---|---|---|
| Gear Ratio: | 61:1 | Efficiency: | 40% |
| Precision: | ≤ 0.1 Degree | Motor Voltage: | 24VDC |
| Color: | As Requested | Application: | Singe Axis Solar Tracking System |
| High Light: | Enclosed House Small Slewing Drive,50Mn Small Slewing Drive,24VDC Small Solar Slewing Drive |
||

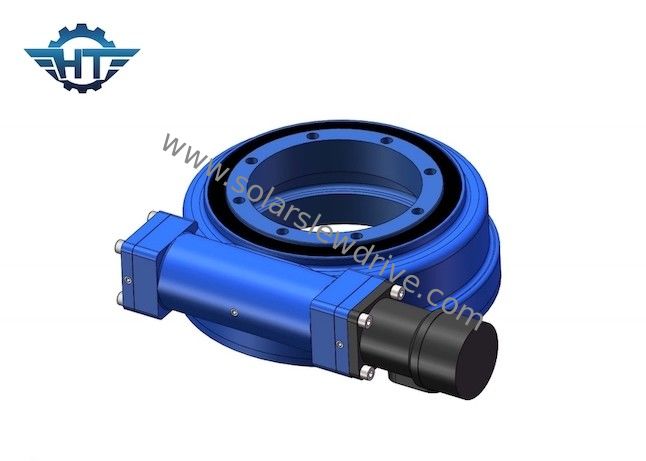

Enclosed House Small Slewing Drive For Singe Axis Solar Tracking System
Enclosed House Small Slew Drive Description
Hangtuo Machinery Co., Ltd. is a high-tech enterprise integrating technology development, production and engineering services. The company has accumulated solid technical strength and rich project experience in solar power generation, solar thermal power generation, construction machinery and other fields, and can provide users with suggestions including product design, product customization solutions, system design, system integration and engineering implementation.y
Changzhou Hangtuo has been focusing on the R&D and innovation of tracking and slewing drive devices. It has a comprehensive production line in solar tracking systems. The products include horizontal single-axis trackers, tilt single-axis trackers, vertical single-axis trackers, and dual-axis trackers. HCPV high-magnification spotlight tracker drive etc.
Parameters of SE Series
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
| 1" | 31:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3" | 31:1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | Yes | 9 |
| 5" | 37:1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 14 |
| 7" | 57:1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 23 |
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62 |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85 |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141 |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182 |
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
