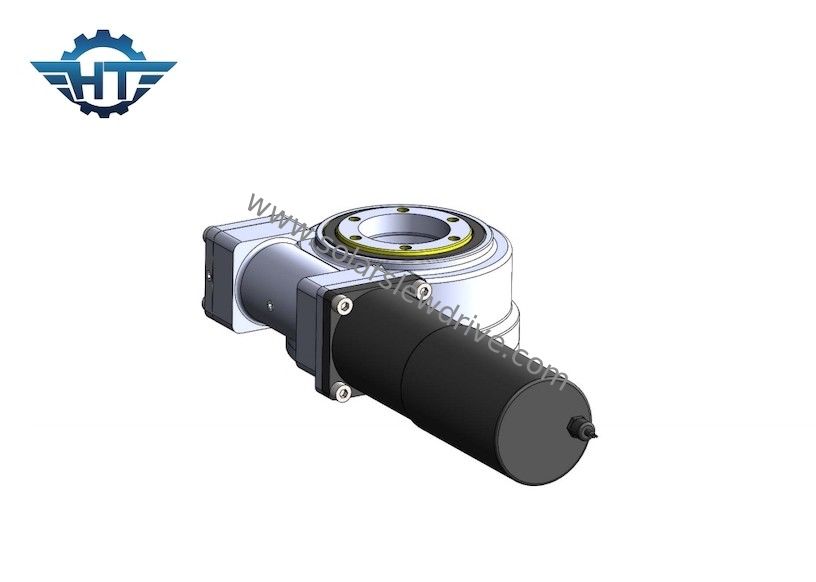

3 Inch Solar Slewing Drive With 24VDC Hall Sensor Gear Motor For Tracking System

3 Inch Solar Slewing Drive With 24VDC Hall Sensor Gear Motor For Tracking System

  • 3 Inch Solar Slewing Drive With 24VDC Hall Sensor Gear Motor For Tracking System
  • 3 Inch Solar Slewing Drive With 24VDC Hall Sensor Gear Motor For Tracking System
3 Inch Solar Slewing Drive With 24VDC Hall Sensor Gear Motor For Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE3
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Gear Ratio: 31:1 Rated Output Torque: 0.065 RPM
Normal Output Torque: 533 Nm Place Of Origin: Changzhou, China
Holding Torque: 7000 Nm Tilting Torque: 744 Nm
Usage: Solar Tracking System Protect Feature: IP66
High Light:

3 Inch Solar Slewing Drive

,

Solar Slewing Drive For Tracking System

,

IP66 Solar Tracking Slewing Drive

3 Inch Solar Slewing Drive With 24VDC Hall Sensor Gear Motor For Solar Tracking System



3 inch Solar Slewing Drive Description



The photovoltaic tracking system tracks the movement of the sun in real time and directs sunlight to the photovoltaic array, thereby increasing the amount of solar radiation received by the photovoltaic array and improving the overall power generation of the solar photovoltaic power generation system. At present, there are four kinds of photovoltaic automatic tracking systems widely used, including horizontal single-axis tracking, double-column oblique single-axis tracking, vertical single-axis tracking and dual-axis tracking, of which horizontal single-axis tracking and inclined single-axis tracking, vertical single-axis tracking are only One rotational degree of freedom, dual-axis tracking has two rotational degrees of freedom.



3 Inch Solar Slewing Drive With 24VDC Hall Sensor Gear Motor For Tracking System 0



Parameters of slewing drive



Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182



Dimensions

3 Inch Solar Slewing Drive With 24VDC Hall Sensor Gear Motor For Tracking System 1
