| Model: | 9 Inch | Gear Ratio: | 61：1 |
|---|---|---|---|
| Application: | PV Mounted Solar Tracking System | Place Of Origin: | Changzhou, China |
| Driver: | DC Motor | Installation: | Vertical |
| Color: | As Requested | Backlash: | ＜0.03 ° |
| High Light: | Single Axis Worm Gearbox Slew Drive,Vertical Worm Gearbox Slew Drive,PV Mounted Worm Gearbox Slew Drive |
||

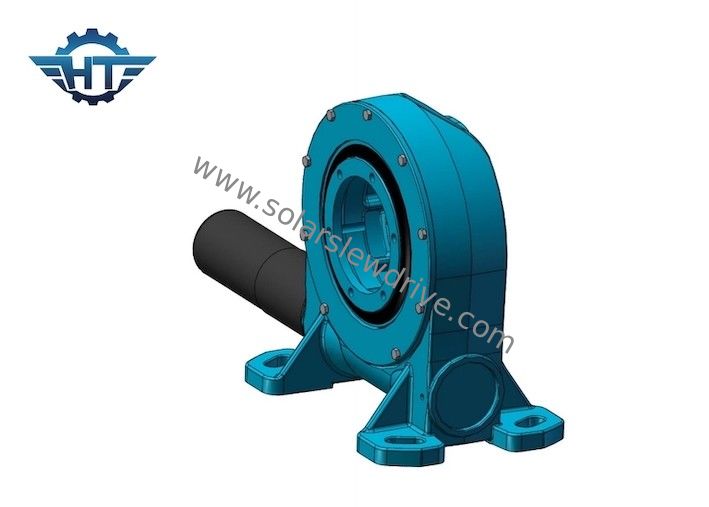

Vertical Single Axis Small Worm Gearbox For PV Mounted Solar Tracking System
Small Worm Gearbox Description
Slewing drive is a compact design applied in scale solar panel mounted tracking system. It can be also applied in mobile applications, including man lifts, lifting cranes and paving machines, satellite, robot, industrial, etc. We offer an extensive range of slewing drives to meet customers’ specifications and needs. Our slew drives deliver on safety, reliability and availability.
Parameters of VE Slewing Drives
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
Advantages
1. Rotation 360 degrees
2. Connection of a driving motor from the left or right side,
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High accuracy
The gear and worm are contact in a condition of near perfect mesh. This will in turn allows for a highly efficient transfer of driving force, uniform load distribution and a very impressive level of positioning accuracy in drive
