Model: | VE7 Worm Gear Slew Drive | Gear Ratio: | 51:1 |
---|---|---|---|
Rated Output Torque: | 7320 N.m | Max Torque: | 11 KN.m |
Holding Torque: | 40 KN.m | Self-locking: | Yes |
Efficiency: | 40% | Color: | Silver Grey |
Highlight: | Self Lock Worm Slew Drive Gearbox,VE7 Worm Slew Drive Gearbox,Solar Tracking Worm Slew Drive Gearbox |

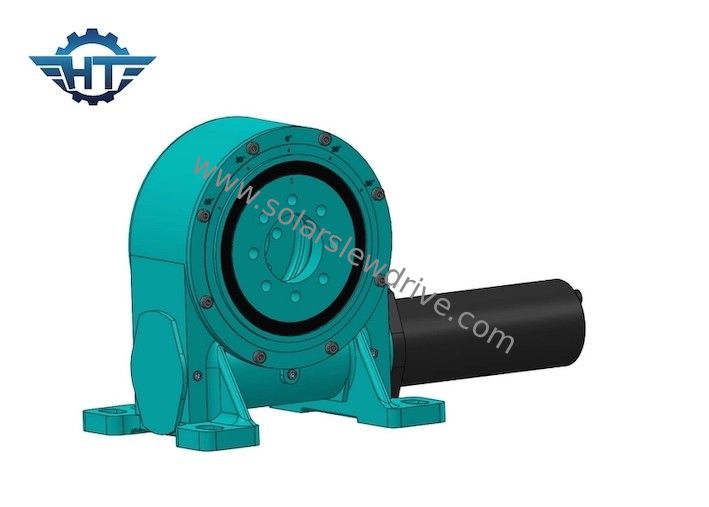

VE7 Self Lock Worm Gear Slew Drive For Solar Tracking System
Worm Gear Slewing Drive Description
The power generation of the dual-axis tracking system using the SDE series slewing drive device is the highest, followed by the inclined single-axis and flat single-axis, and the power generation gains of the fixed support are 23.83%, 22.89% and 11.2%, respectively. At the same time, the power curve of the tracking bracket is flatter than that of the fixed bracket and the flexible bracket, and it is more friendly to the power system.
Located in high latitude areas, the cumulative radiation of VE series and SE series flat uniaxial supports with inclined angles and flat uniaxial supports with 5° and 10° inclined angles has obvious advantages over conventional flat uniaxial supports.
Reliability: Slewing drives are designed and tested to guarantee a 30-year field life. All of the raw materials are meet the standards required by ISO9001 and CE. We implement a sound quality control to ensure out products of high quality, reliable and low cost.
Performance: slew drives are powered with hourglass worm technology to give the gearbox enormous strength and power, maximum survivability load-holding as well as increased efficiency and accuracy.
Applications: Slewing drive applications include solar trackers, wind turbines, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s and automotive lifts etc
Installation: Our slewing drives could be mounted horizontally, vertically or a combination of multiple axes.
VE7 Performance Parameters
Model: | VE7 Slewing Drive |
Rated Output Torque: | 6120 N.m |
Tilting Torque: | 10 kN.m |
Static Axial Load: | 110 kN |
Static Radial Load: | 60 kN |
Holding Torque: | 39 kN.m |
Efficiency: | 40% |
Precision: | ≤0.1 ° |
Self-locking: | Yes |
Weight: | 45 kg |
Technical Datasheet of VE Model Slewing Drive
Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Q&A
1. How to choose?
Please specify the diameter size, width, voltage, power and no-load speed of the required motors, the square meters of the solar panels/mirrors, the arrangement of those solar panels/mirrors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight.
We will give you the best shipping cost after you choose the suitable slewing drives.
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
1 set
6. What's your delivery time?
For standard samples: 0~15 days; for batch orders: within 25~40 days.
