Place of Origin: | China |
Brand Name: | HangTuo |
Certification: | CE, ISO9001 |
Model Number: | SE9" |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 100~1600/ pc |
Packaging Details: | plywood box |
Delivery Time: | 15~45 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Gear Ratio: | 61:1 | Type: | Enclosed Housing |
---|---|---|---|
Application: | Solar Tracking System | Driver: | DC Motor |
IP Protection: | IP66 | Color: | As Requested |
Effciency: | 40% | Backlash: | 0.1 Degree |
High Light: | Slew Drive Gearbox For Outdoor,SE9 Worm Slew Drive Gearbox,IP66 Worm Slew Drive Gearbox |

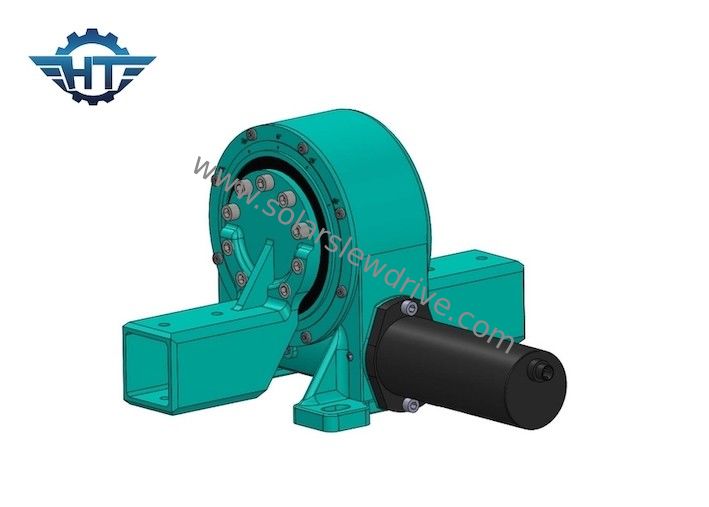

SE9 Worm Slew Gear For Outdoor High Accuracy Solar Tracking System
Worm Slew Gear Description
The solar slew gearbox is mainly used for the following solar tracking systems:
1. Single-axis solar tracking system. There are mainly two types of single axis solar tracking system: one is horizontal single-axis solar tracking system, the main beam of solar panel will adjust the angle to precisely track the declination angle. This kind of slewing drive is only applied for low latitudes area. The other one is tilted single-axis tracking system. Tilted Single-Axis Tracker is suitable for areas with latitudes higher than 40 degrees, which can maximize the benefits of power yield.
2. Dual axis solar tracking system. Dual axis solar tracking system is "altitude+azimuth" full-tracking system, it moves along two rotation axes with two rotational degrees to completely track the sun's orbit and maximize solar energy reception. This kind of slewing drive is suitable for high-latitude areas and the efficiency of power generation will be increased over 35%, which significantly improve the efficiency of solar power generation system.
Performance Parameters of SE Series
Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
