Single Axis Slew Drive Gearbox IP66 Enclosed For Tracker 220V

Single Axis Slew Drive Gearbox IP66 Enclosed For Tracker 220V

  • Single Axis Slew Drive Gearbox IP66 Enclosed For Tracker 220V
  • Single Axis Slew Drive Gearbox IP66 Enclosed For Tracker 220V
Single Axis Slew Drive Gearbox IP66 Enclosed For Tracker 220V
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Material: Cast Iron Warranty: 10 Years
Application: PV Solar Tracker Axis: Single Axis
Color: As Requested Installation Site: Large Solar Farm
Feature: Quick Installation Motor: 12V/24V/220V
High Light:

Enclosed Single Axis Slew Drive Gearbox

,

Enclosed Slew Drive Gearbox For Tracker

,

220V Enclosed Slew Drive Gearbox

Single Axis Slew Drive Gearbox IP66 Enclosed Slewing Drive For Solar Tracker



Slew Drive Gearbox Slewing Drive Description



Hangtuo's slew drive gearbox is equipped with an IP66 closed enclosure, which has the advantages of low maintenance, low cost, etc., and can provide greater protection of the device. It has the structure of worm and wormwheel with multi-tooth contact.

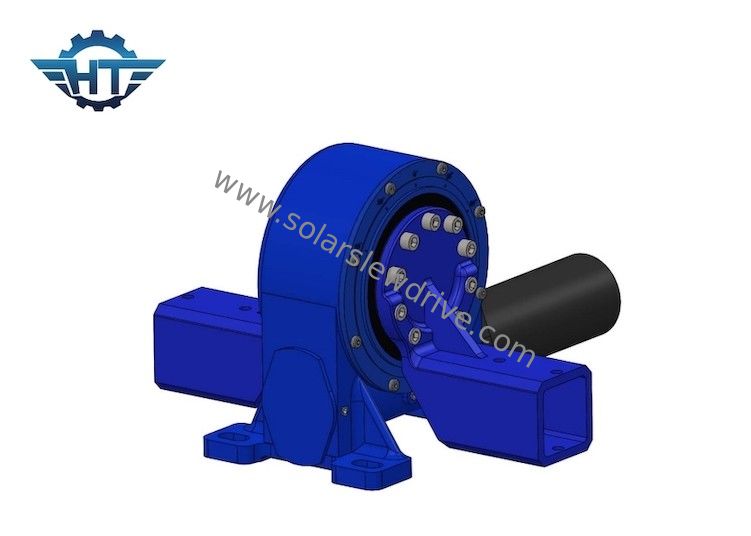

Single Axis Slew Drive Gearbox IP66 Enclosed For Tracker 220V 0



VE Model Slewing Drive Parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Applications



Hangtuo's full range of slewing drives are suitable for PV solar tracking system, construction machinery such us mining equipment, aerial work vehicles, cranes, excavation frames, positioners, steering systems, other applications like satellite or antenna tracking which required high tracking precision and medical fields. Specific applications can be consulted, we can develop new slewing drive to meet the demand of new applications.
