Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE5" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1100/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Power Supply: | 24 V | Type: | Vertical Single Axis |
|---|---|---|---|
| Place Of Origin: | Changzhou, China | Output Torque: | 533 Nm |
| Output Speed: | 0.065 RPM | Feature: | Double Envelop |
| Usage: | Sun Tracking System | Protect Feature: | IP66 |
| Highlight: | VE5 Single Axis Slewing Bearing Drive,Vertical Slewing Bearing Drive,533 Nm Slewing Bearing Drive |
||

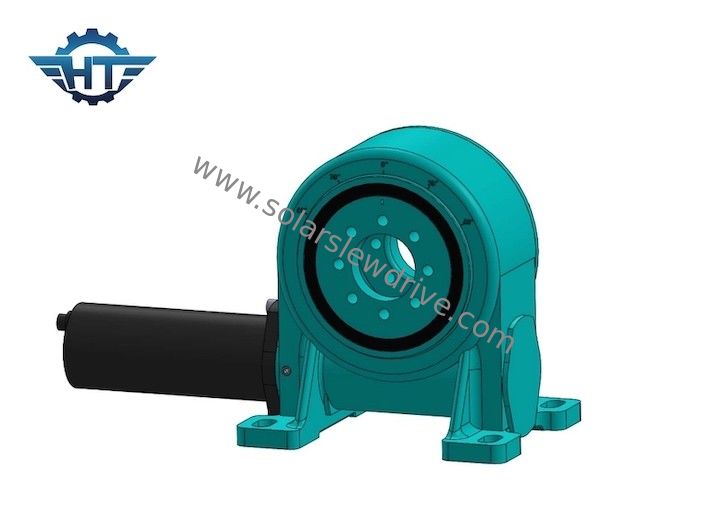

VE5 Single Axis Slewing Bearing Drive Vertical 533 Nm For Sun Tracking System
Single Axis Slewing Bearing Drive Description
Hangtuo's slewing units are equipped with a low-maintenance IP66-rated enclosure that protects against environmental contaminants such as dust, dirt, sand and water. Through rigorous testing, we can back it up with a 30-year product warranty.
Performance Data of VE Series Slewing Drive
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Application
Slewing drive is a perfect product for the application which requires rotational torque strength.It is designed in solar photovoltaic panel rotation and improves power generation efficiency. Single axis & dual axis solar tracking solutions are available. Slewing drives are used to rotate the pedestal in wind turbines. It is widely applied on mounted truck crane, aerial working platform, dock crane, timber grab, automation/assembly line, robotic arm. It can also be used for space communications and global positioning systems in satellite dish.
