Solar Slew Drive
Created with Pixso. Single Axis Worm Gear Slewing Drive For 24vdc Electrical Motor Tracking System

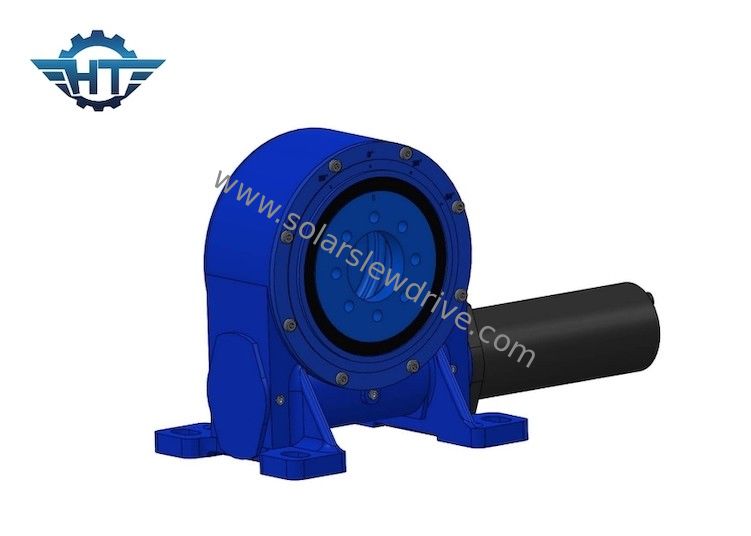

Single Axis Worm Gear Slewing Drive For 24vdc Electrical Motor Tracking System

Brand Name: HANGTUO
Model Number: VE5"
MOQ: 1 PC
Price: 145~226 USD/PC
Delivery Time: 15~30 DAYS
Detail Information
Place of Origin:
CHINA
Certification:
CE, ISO9001
Type:
Slewing Drive
Material:
Cast Iron
Application:
Electrical Motor Solar Tracking System
Warranty:
10 Years
Color:
Customer Required
Size:
3 Inch - 25 Inch
Motor:
24V
Feature:
Long Life
Packaging Details:
PLYWOOD BOX
Supply Ability:
12000 PCS/YEAR
Highlight:

24vdc Solar Slewing Drive Gearbox

,

Single Axis Worm Gear Slewing Drive

,

Electrical Motor Solar Slew Drive

Product Description

Single Axis Worm Gear Slewing Drive For 24vdc Electrical Motor Solar Tracking System



Worm Gear Slewing Drive​ Description



Due to the use of slewing bearing and annular worm structure, the rotary reducer can achieve multi-tooth contact, and has the characteristics of large transmission torque and stable operation; it can withstand large radial and axial loads and strong overturning moments. (wind resistance ability), it is being widely used in solar photovoltaic power generation tracking system and other new energy industries by domestic and foreign customers.

Single Axis Worm Gear Slewing Drive For 24vdc Electrical Motor Tracking System 0The products currently have 11 models ranging from 1-inch diameter to 25-inch diameter, and more than 60 varieties, which can meet the needs of different forms of photovoltaic, photoelectric, photothermal general and precision tracking.



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Application



The slewing drive is mainly used in solar photovoltaic power generation single and double axis tracking systems, construction machinery, port machinery and small wind power stations, satellite radar tracking and other fields.
