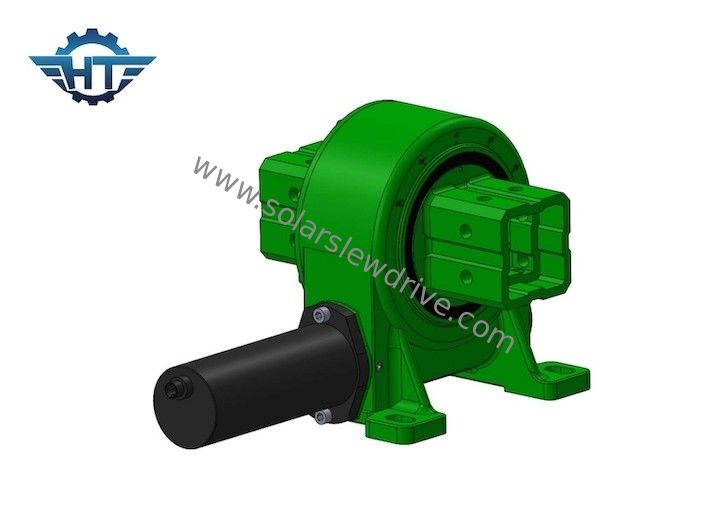

Horizontal Worm Gear Slewing Drive Single Axis For 24V Sun Tracking System

Horizontal Worm Gear Slewing Drive Single Axis For 24V Sun Tracking System

  • Horizontal Worm Gear Slewing Drive Single Axis For 24V Sun Tracking System
  • Horizontal Worm Gear Slewing Drive Single Axis For 24V Sun Tracking System
Horizontal Worm Gear Slewing Drive Single Axis For 24V Sun Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 200~300/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: Cast Iron Model: VE7"
Gear Ratio: 57:1 Rated Output Torque: 7320 Nm
Holding Torque: 3.9~5 KNm Tilting Torque: 8 KNm
Efficiency: 40% Standard Color: As Requested
High Light:

Horizontal Worm Gear Slewing Drive

,

Solar Gear Slewing Drive For 24V

,

Sun Tracking Solar Gear Slewing Drive

Horizontal Worm Gear Single Axis Slewing Drive For 24V Sun Tracking System



Single Axis Slewing Drive Description



Hangtuo is committed to the research, development and application of high-quality and precise transmission equipment products. Provide reliable mechanical actuator components for flat single-axis and dual-axis photovoltaic tracking, slot, butterfly, and concentrating systems. Horizontal Worm Gear Slewing Drive Single Axis For 24V Sun Tracking System 0

The company produces professional slewing drive devices to meet the needs of smooth operation of aerial work vehicles, truck-mounted cranes, wood grabbers, roadheaders, spray equipment, hydraulic module vehicles, automated assembly lines, and wind yaw systems.



Technical Date of Vertical Series



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Our Strength



1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System;
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.



Services


1. OEM service

2. We provide standard products and non-standard products;

3. We provide customized samples, customized drawings, door-to-door mapping and other services;

4. We provide a full range of services, including design, processing, packaging, transportation, etc.


Packaging & Shipping



1. Filling with rust-proof oil

2. Packing with protective layers

3. Fixed in the plywood case, pallet, steel frame
