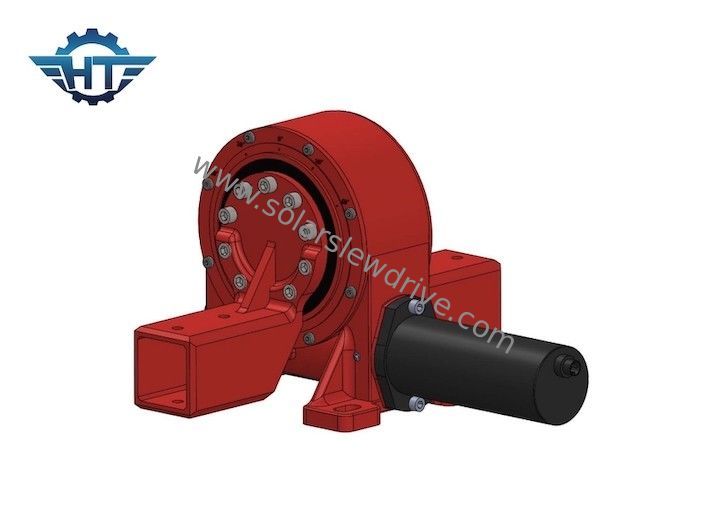

Single Worm Gear Slew Drive Gearbox For Horizontal Solar Tracking System

Single Worm Gear Slew Drive Gearbox For Horizontal Solar Tracking System

  • Single Worm Gear Slew Drive Gearbox For Horizontal Solar Tracking System
  • Single Worm Gear Slew Drive Gearbox For Horizontal Solar Tracking System
Single Worm Gear Slew Drive Gearbox For Horizontal Solar Tracking System
Product Details:
Place of Origin: China
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Brand Name: Hangtuo Material: QT
Axis: Single Axis Certificate: ISO9001, CE
Motor: DC And AC Maintenance: Easy
Color: As Requested Self-lock: Yes
High Light:

Single Worm Gear Slew Drive Gearbox

,

Solar Tracking Horizontal Slew Drive Gearbox

,

Single Axis Worm Slew Drive Gearbox

Single Worm Gear Vertical Slew Drive Gearbox For Horizontal Single Solar Tracking System



Single Worm Gear Vertical Slew Drive Description



Slewing drives have a special structure that can bear combined loads of radial, axial and tilting moments at the same time; they are widely used in elevators, metallurgy, construction, ports and wind turbines, etc. Improving the bearing capacity of the slewing drive is one of our goals. We need to understand the influence of design parameters on the bearing capacity in order to choose reasonable design parameter values.



VE Model Slewing Drives Parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Advantages Of Slewing Drive Solar Tracker



The sun is a constantly moving target. Single axis slewing drive solar tracker move from east to west daily to get the most sunlight, while dual-axis solar trackers move with the sun from dawn to dusk from not only from east to west but also north to south to maximize energy production throughout the day.
