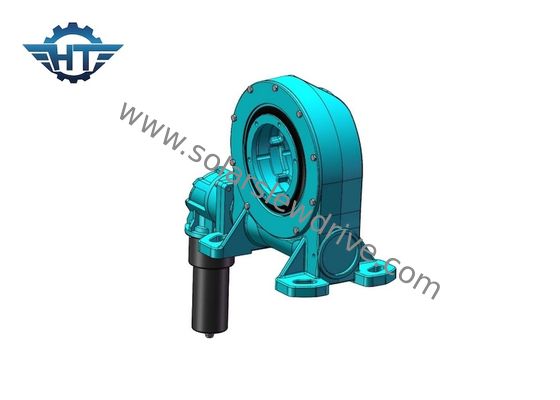

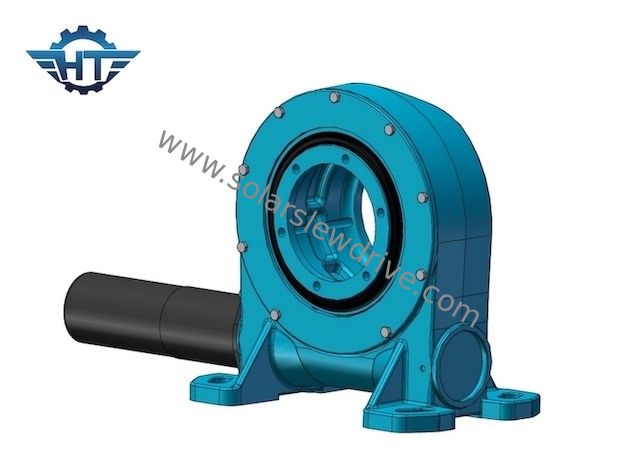

Horizontal Single Axis Slewing Drive Gearbox For Motor Driven Solar Tracking System

Horizontal Single Axis Slewing Drive Gearbox For Motor Driven Solar Tracking System

  • Horizontal Single Axis Slewing Drive Gearbox For Motor Driven Solar Tracking System
  • Horizontal Single Axis Slewing Drive Gearbox For Motor Driven Solar Tracking System
Horizontal Single Axis Slewing Drive Gearbox For Motor Driven Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 200~300/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Model: VE7"
Gear Ratio: 57:1 Rated Output Torque: 7320 Nm
Holding Torque: 3.9 KNm Tilting Torque: 8 KNm
Efficiency: 40% Standard Color: As Requested
High Light:

Slew Drive Gearbox For Motor Driven

,

7320 Nm Slew Drive Gearbox

,

Horizontal Single Axis Slewing Drive Gearbox

VE7 Slew Drive Gearbox, Envelop Worm With High Torque For Horizontal Single Axis Solar Trackers



Description



In photovoltaic power generation, the more light energy absorbed by the interface layer of the solar panel, the greater the current generated. When the sunlight hits the surface of the solar panel vertically, the photovoltaic effect is the best, and the photoelectric conversion efficiency is the highest. People can't hold the sun to align the solar panel to keep the vertical irradiation, but you can let the solar panel move with the movement of the sun, from sunrise to sunset, always maintain the best vertical state of receiving sunlight. This method is called photovoltaic tracking technology, and a slewing drive is required in photovoltaic tracking technology.


The slewing drive device is a product with simple structure, easy installation, low cost, easy maintenance and improved reliability.



Technical Data of Vertical Series Slewing Drives



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Features



1. Rotation ±60 degree or 360 degree.

2. Motor connnet on the left or right side,

3. No need to adjust the gearing clearance; this is already set by the producer before factory

4. Simple installation and low maintenance, every 5 years.

5. Rational space utilization

6. Self-locking gear, therefore a brake is not necessary

7. Easy and fluent method of starting and stopping

8. High accuracy

9. IP66 protection grade



Our Strength



1. OEM service

2. We provide standard products and non-standard products;

3. We provide customized samples, customized drawings, door-to-door mapping and other services;

4. We provide a full range of services, including design, processing, packaging, transportation, etc.


Packaging & Shipping



1. Filling with rust-proof oil

2. Packing with protective layers

3. Fixed in the plywood case, pallet, steel frame
