Compact Worm Gear Slew Drive Gearbox For Solar Heating Storage System

Compact Worm Gear Slew Drive Gearbox For Solar Heating Storage System

  • Compact Worm Gear Slew Drive Gearbox For Solar Heating Storage System
  • Compact Worm Gear Slew Drive Gearbox For Solar Heating Storage System
Compact Worm Gear Slew Drive Gearbox For Solar Heating Storage System
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE5"
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 145~226 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Type: Slewing Drive Material: QT
Application: Solar Heating Storage System Warranty: 10 Years
Color: Customer Required Size: 3 Inch - 25 Inch
Motor: 24VDC Feature: 30 Years Life Duty
High Light:

Compact Worm Gear Slew Drive Gearbox

,

Solar Heating Storage Slew Drive Gearbox

,

25 Inch Slew Drive Gearbox

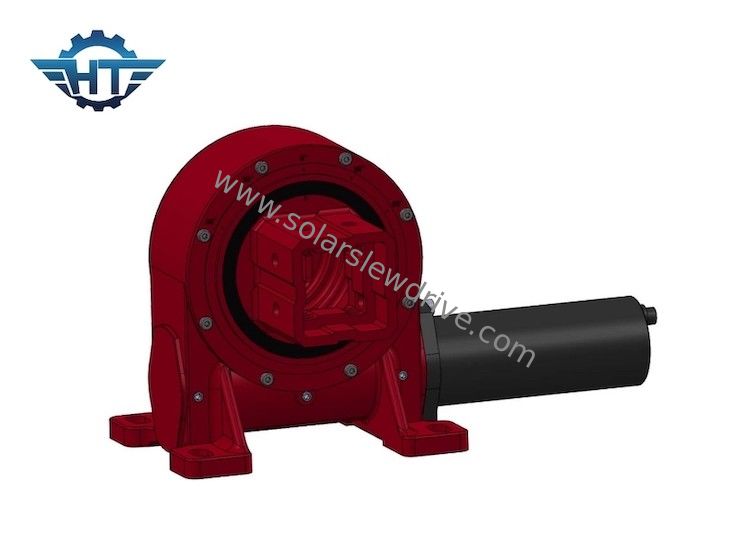

Compact Small Size Worm Gear Slew Drive Gearbox For Solar Heating Storage System



Small Size Worm Gear Slew Drive Description



Because the rotary reducer adopts the slewing bearing and the annular enveloping worm structure, it can achieve multi-tooth contact, so the transmission torque is large, the operation is stable, and it can withstand large radial and axial loads and strong overturning moments (anti-rotation torque). wind resistance), widely used in solar photovoltaic tracking systems and other new energy industries.



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Features



1. Rotate from 0~180° or ± 60 °

2. Connect a 12V/24V motor on the left or right side

3. Grease had been filled before factory

4. Simple installation

5. Rational space utilization

6. The gear is self-locking

7. High backholding torque, suitable for vertical installation

8. Low maintenance
