Heavy Duty Worm Gear Slewing Gearbox With Enclosed House For PV Tracking System

Heavy Duty Worm Gear Slewing Gearbox With Enclosed House For PV Tracking System

  • Heavy Duty Worm Gear Slewing Gearbox With Enclosed House For PV Tracking System
  • Heavy Duty Worm Gear Slewing Gearbox With Enclosed House For PV Tracking System
Heavy Duty Worm Gear Slewing Gearbox With Enclosed House For PV Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: VE9 Gear Ratio: 61:1
Application: PV Tracking System Place Of Origin: Changzhou, China
Gear Motor: 24V Planetary Gearbox Certificate: ISO9001, CE
Color: As Requested Backlash: ≤0.1°
High Light:

Heavy Duty Worm Gear Slewing Gearbox

,

Slew Drive Gearbox With Enclosed House

,

PV Tracking System Slew Drive Gearbox

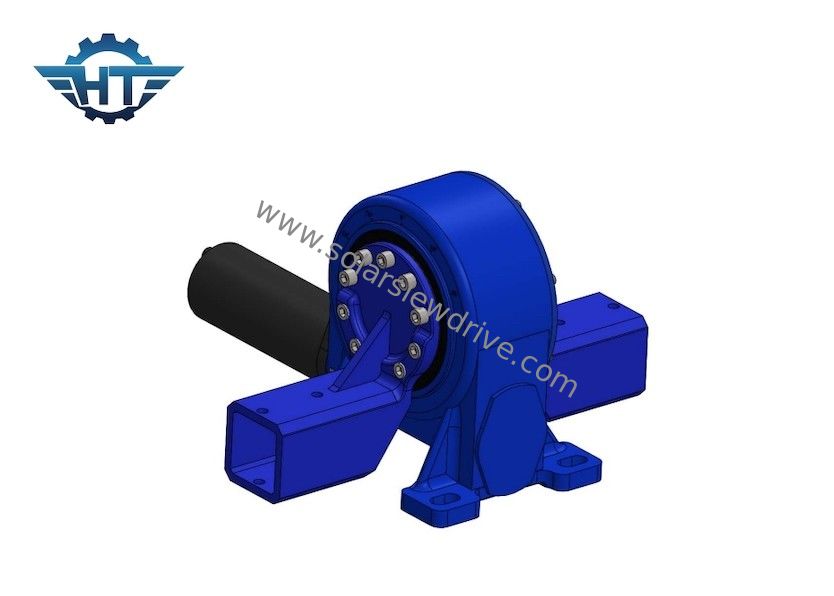

Heavy Duty Worm Gear Slewing Gearbox With Enclosed House For PV Tracking System



Worm Gear Slewing Gearbox Description



The enclosed housing slewing drive is mainly used in the case of relatively high working conditions, such as dustproof, rainproof, anti-corrosion and other occasions with high requirements for the rotating structure, and the IP level reaches IP66.



Common features for different slewing drives can include an hourglass-shaped worm, which is often considered more efficient because multiple teeth on the gear can be engaged at once. Other features can include a protective enclosure meant to keep the mechanisms clean. In general, the purpose of different slewing drive is to change axial movement to radial movement. Depending on the number of threads on the worm and the number of teeth on the gear, the speed and power of the axial force will be converted to a specific radical force. Depending on the application, a slewing drive might be useful for amplifying the torque that rotates a mechanism.



VE Model Technical Parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Applications



The slewing drive can be used for a wide range of applications. The areas of deployment range from excavators and cranes, opencast mining and wind turbines, to antenna. Other fields of application include engineering and solar tracking system.
