Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | 9 Inches | Gear Ratio: | 61:1 |
|---|---|---|---|
| Efficiency: | 40% | Application: | Solar Tracking System |
| Type: | Vertical Mounted | Precison: | High Precision |
| OEM Service: | Available | ||
| High Light: | IP66 Enclosed House Slew Drive Gearbox,Single Flat Slew Drive Gearbox,9 inches Slew Drive Gearbox |
||

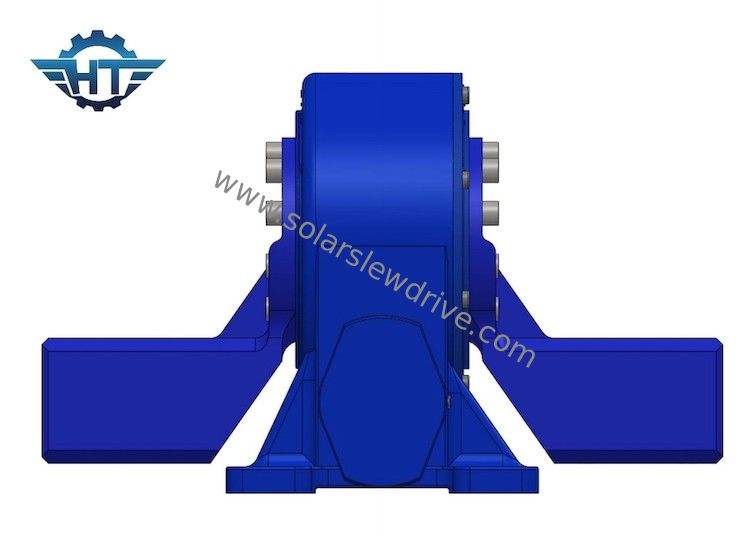

IP66 Enclosed House Slew Drive Gearbox For Single Flat PV Solar Tracking System
Enclosed House Slew Drive Description
The application of slewing drive in the solar industry has greatly reduced operating costs and maintenance costs, and at the same time, its work efficiency has also been greatly improved, and it has been used more and more.
| Model: | VE9 | Place of Origin | Changzhou,China |
| Brand | HANGTUO | Type | Enclosed |
| Material | 42CrMo,50Mn | Output Torque | 2250 N.m |
| Tilting Moment Torque | 16 KN.m | Holding Torque | 30.8 KN.m |
| Static Axial Rating | 60 KN | Static Radial Rating | 130 KN |
| Dynamic Axial Rating | 30 KN | Dynamic Radial Rating | 65 KN |
| Gear Ratio | 61:1 | Efficiency | 40% |
Features
Output high torque under low speed conditions,
Can transmit comprehensive axial force, radial force and overturning moment
High performance density ratio
self-locking performance
Small space ratio, easy installation and disassembly
Diversified output forms
Pre-adjust the gap value and install it directly on the machine
IP66
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
Note:
Express: door to door, just need to pay the import tax if required by the custom.
By air or by sea: factory to destination airport/sea port, need pay destination fee charged by the airport(the destination fee is always charged by per B/L regardless of the package is big, small, heavy or light, in gerneral 200~400 USD per cargo) and import tax if required by the custom.
By train: sometimes the shipping price is the same as sea but taking less shipping time than sea, we will take this shipping way into consideration if the goods are in urgent need by our clients.
