Place of Origin: | China |
Brand Name: | HangTuo |
Certification: | CE, ISO9001 |
Model Number: | VE5 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 100~1100/ pc |
Packaging Details: | plywood box |
Delivery Time: | 15~45 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Power Supply: | 24VDC | Type: | Singe Axis |
---|---|---|---|
Place Of Origin: | Changzhou, China | Output Torque: | 533 Nm |
Output Speed: | 0.065 RPM | Feature: | Double Envelop |
Usage: | High Precision Tracking Solar Energy | Protect Feature: | IP66 |
Highlight: | High Precision Solar Tracker Slew Drive,Double Envelope Solar Tracker Slew Drive,533 Nm Solar Tracker Gear Slew Drive |

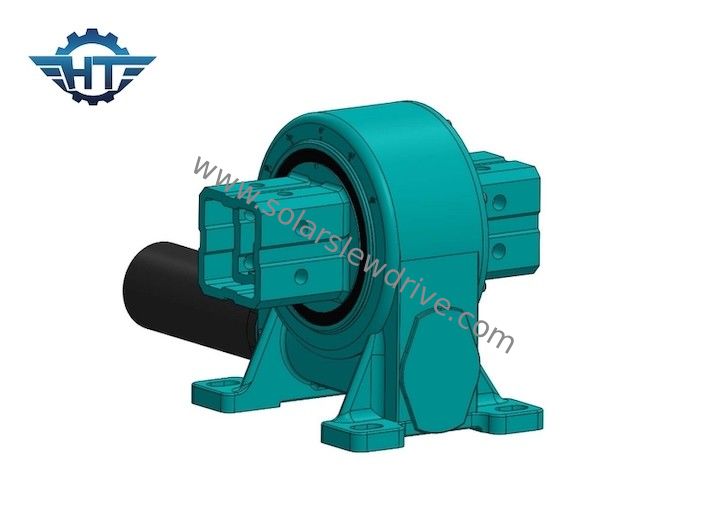

Small Size Single Axis Solar Tracker Slew Drive For High Precision Tracking Solar Energy
Vertical Type worm gear Small Slewing Drive Description
The slewing drive is the best solution for any occasion where need for full-cycle rotation and variable speed requirements. It can provide larger torque power transmission, higher accuracy and it has compact structure. Enclosed vertical single axis vslewing drive can realize the movement in vertical directions, tracking the sun from east to west. Usually apply to the horizontal single axis solar tracking systems or some machinery equipment with similar working condition.
VE worm gear means vertical installation slewing drive, it has IP66 protection. It mainly apply to the high working condition requirement for dust proof, rain-proof and anti-corrosion occasion. It has the advantage of saving equipment space, maximum load capacity, compact design, and extensive service life and reduced maintenance costs.
Performance Data
Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Application
Slewing drive is a perfect product for the application which requires rotational torque strength.
Slew Drive For Solar: it is designed in solar photovoltaic panel rotation and improves power generation efficiency. Single axis & dual axis solar tracking solutions are available.
For wind generators: Slewing drives are used to rotate the pedestal in wind turbines
For Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, dock crane, timber grab
For Industry Market: Automation/assembly line, robotic arm
For Satellite: slew drive can be used for space communications and global positioning systems in satellite dish
